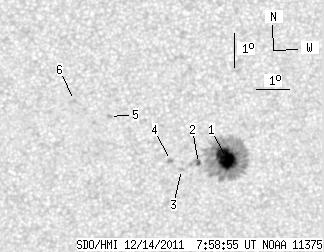

SDO HMI 2011-12-14 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.61 | 156.50 | 14.46 | 79.10 | 8.44 | 357.31 | 6.78 | 323.92 | 0.1993 | -1095.5 | -421.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.84 | 144.50 | 14.07 | 73.03 | 8.42 | 357.45 | 6.92 | 323.27 | 0.2002 | -1403.2 | -427.2 | |
| 0.77 | 5.36 | 0.39 | 2.71 | 8.27 | 356.61 | 6.08 | 326.31 | 0.1898 | -904.7 | -703.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 8.09 | 356.09 | 5.57 | 328.06 | 0.1824 | -1027.0 | -758.5 | |
| 0.00 | 2.30 | 0.00 | 1.16 | 8.36 | 355.77 | 5.24 | 330.34 | 0.1835 | -1015.0 | -812.1 | |
| 0.00 | 1.87 | 0.00 | 0.95 | 9.68 | 353.96 | 3.43 | 341.99 | 0.1916 | 914.0 | 729.5 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 10.16 | 352.91 | 2.38 | 347.81 | 0.1949 | 810.0 | 615.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
