SDO HMI 2011-12-14 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.52 | 408.26 | 37.13 | 211.89 | -18.04 | 352.20 | 2.22 | 187.08 | 0.3005 | 1063.4 | 457.2 | |
|
previous
or next observation for the same group /

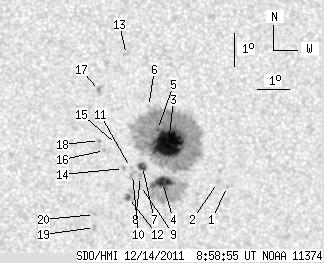

back to the solar disc SDO HMI 2011-12-14 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | -19.10 | 354.22 | 4.23 | 192.51 | 0.3235 | -870.0 | -641.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.98 | 353.90 | 3.92 | 191.69 | 0.3204 | -943.0 | -699.1 | |
| 49.13 | 298.85 | 25.47 | 154.80 | -17.77 | 352.35 | 2.37 | 187.67 | 0.2963 | 1482.7 | 513.5 | |
| 14.13 | 69.39 | 7.37 | 36.26 | -18.98 | 352.18 | 2.20 | 186.63 | 0.3159 | 1124.0 | 262.5 | |
| 1.45 | -3.00 | 0.75 | -3.00 | -17.34 | 352.01 | 2.02 | 186.75 | 0.2884 | 1149.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -16.64 | 351.72 | 1.74 | 186.08 | 0.2760 | 226.0 | 196.9 | |
| 5.02 | 6.30 | 2.61 | 3.28 | -18.49 | 351.55 | 1.57 | 184.89 | 0.3066 | 1090.0 | 828.7 | |
| 0.00 | 2.55 | 0.00 | 1.33 | -18.80 | 351.49 | 1.51 | 184.62 | 0.3117 | 880.0 | 750.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -19.07 | 351.50 | 1.51 | 184.55 | 0.3163 | 826.0 | 690.1 | |
| 0.00 | 3.66 | 0.00 | 1.91 | -18.73 | 351.24 | 1.26 | 183.87 | 0.3103 | 937.0 | 686.0 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -18.52 | 351.18 | 1.20 | 183.72 | 0.3067 | 712.0 | 675.6 | |
| 1.79 | 7.92 | 0.93 | 4.14 | -19.45 | 351.12 | 1.14 | 183.36 | 0.3221 | 953.5 | 740.9 | |
| 0.00 | 1.96 | 0.00 | 1.00 | -15.05 | 351.04 | 1.05 | 184.12 | 0.2482 | -1003.0 | -753.7 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -18.55 | 350.96 | 0.98 | 183.04 | 0.3070 | 966.0 | 761.4 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -17.81 | 350.74 | 0.76 | 182.47 | 0.2944 | 743.0 | 537.7 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -17.99 | 350.37 | 0.39 | 181.25 | 0.2973 | 721.0 | 605.5 | |
| 0.00 | 3.15 | 0.00 | 1.62 | -16.15 | 350.21 | 0.23 | 180.83 | 0.2662 | -1018.0 | -810.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -17.68 | 350.21 | 0.23 | 180.76 | 0.2921 | 901.0 | 690.8 | |
| 0.00 | 2.81 | 0.00 | 1.48 | -20.39 | 350.06 | 0.08 | 180.22 | 0.3371 | 833.0 | 617.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -19.98 | 350.06 | 0.08 | 180.22 | 0.3303 | 879.0 | 650.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
