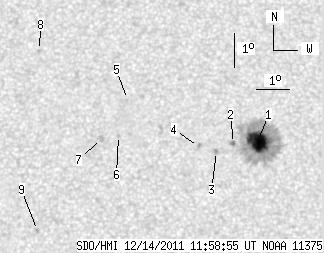

SDO HMI 2011-12-14 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.84 | 160.20 | 14.15 | 81.36 | 8.37 | 357.14 | 8.79 | 316.73 | 0.2212 | -841.3 | -332.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.41 | 148.19 | 13.93 | 75.32 | 8.38 | 357.49 | 9.15 | 315.35 | 0.2248 | -1399.6 | -392.9 | |
| 0.43 | -1.00 | 0.22 | -1.00 | 8.32 | 356.76 | 8.42 | 317.51 | 0.2155 | -1071.4 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 8.08 | 356.25 | 7.90 | 318.53 | 0.2066 | -1071.0 | -816.5 | |
| 0.00 | 1.79 | 0.00 | 0.90 | 8.23 | 355.71 | 7.37 | 320.99 | 0.2025 | -946.0 | -706.4 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 9.63 | 353.60 | 5.26 | 333.45 | 0.2031 | 737.0 | 616.7 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.55 | 353.32 | 4.97 | 332.16 | 0.1844 | 992.0 | 809.0 | |
| 0.00 | 3.40 | 0.00 | 1.71 | 8.46 | 352.81 | 4.46 | 334.42 | 0.1791 | 698.0 | 695.8 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 11.10 | 350.97 | 2.63 | 347.67 | 0.2119 | 873.0 | 682.0 | |
| 0.00 | 1.87 | 0.00 | 0.93 | 5.72 | 350.88 | 2.54 | 338.79 | 0.1222 | 886.0 | 628.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
