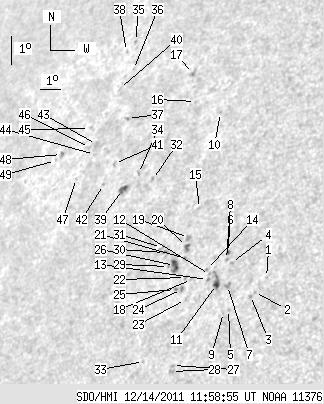

SDO HMI 2011-12-14 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.52 | 83.38 | 9.87 | 66.65 | 20.91 | 300.38 | -47.97 | 62.25 | 0.7851 | -193.0 | -207.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.61 | 19.16 | 305.61 | -42.73 | 62.21 | 0.7269 | -682.0 | -505.5 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 18.70 | 305.25 | -43.09 | 62.98 | 0.7288 | -638.0 | -524.3 | |
| 0.00 | 0.85 | 0.00 | 0.61 | 18.60 | 305.11 | -43.24 | 63.16 | 0.7299 | -701.0 | -625.1 | |
| 0.00 | 1.45 | 0.00 | 1.07 | 19.65 | 303.93 | -44.41 | 62.33 | 0.7465 | -737.0 | -560.6 | |
| 0.00 | 1.02 | 0.00 | 0.75 | 18.17 | 304.30 | -44.05 | 64.06 | 0.7369 | -686.0 | -554.2 | |
| 1.11 | 1.36 | 0.83 | 1.02 | 19.97 | 303.64 | -44.70 | 62.06 | 0.7507 | -546.8 | -684.3 | |
| 0.00 | 2.98 | 0.00 | 2.20 | 18.93 | 304.01 | -44.34 | 63.22 | 0.7429 | -800.0 | -633.7 | |
| 0.00 | 0.94 | 0.00 | 0.70 | 19.75 | 303.68 | -44.67 | 62.32 | 0.7495 | -724.0 | -590.5 | |
| 0.00 | 0.26 | 0.00 | 0.19 | 18.08 | 304.11 | -44.24 | 64.26 | 0.7386 | -690.0 | -662.3 | |
| 0.00 | 1.19 | 0.00 | 0.96 | 24.48 | 301.41 | -46.94 | 57.54 | 0.7903 | -502.0 | -390.9 | |
| 2.81 | 8.09 | 2.09 | 6.02 | 18.97 | 303.51 | -44.83 | 63.38 | 0.7482 | -701.5 | -605.6 | |
| 0.00 | 0.94 | 0.00 | 0.70 | 19.28 | 303.09 | -45.26 | 63.15 | 0.7538 | -478.0 | -423.9 | |
| 0.00 | 1.45 | 0.00 | 1.09 | 19.13 | 303.05 | -45.29 | 63.36 | 0.7535 | -576.0 | -506.7 | |
| 0.00 | 0.94 | 0.00 | 0.71 | 19.44 | 302.90 | -45.45 | 63.03 | 0.7563 | -440.0 | -308.1 | |
| 0.00 | 1.11 | 0.00 | 0.86 | 21.39 | 301.82 | -46.52 | 61.07 | 0.7743 | -410.0 | -433.3 | |
| 0.00 | 0.85 | 0.00 | 0.71 | 24.86 | 300.01 | -48.34 | 57.69 | 0.8043 | -396.0 | -336.0 | |
| 0.00 | 3.40 | 0.00 | 2.88 | 25.79 | 299.41 | -48.94 | 56.87 | 0.8130 | -543.0 | -368.4 | |
| 0.00 | 1.11 | 0.00 | 0.84 | 19.14 | 302.33 | -46.01 | 63.64 | 0.7609 | -535.0 | -492.2 | |
| 0.00 | 2.64 | 0.00 | 2.05 | 20.47 | 301.69 | -46.65 | 62.25 | 0.7722 | -520.0 | -430.0 | |
| 0.85 | 3.49 | 0.66 | 2.70 | 20.18 | 301.71 | -46.63 | 62.59 | 0.7710 | -689.2 | -603.1 | |
| 0.00 | 1.45 | 0.00 | 1.12 | 19.80 | 301.81 | -46.53 | 63.02 | 0.7686 | -676.0 | -563.4 | |
| 0.00 | 1.45 | 0.00 | 1.11 | 19.20 | 302.04 | -46.31 | 63.68 | 0.7642 | -519.0 | -419.2 | |
| 0.00 | 1.11 | 0.00 | 0.84 | 18.51 | 302.28 | -46.06 | 64.44 | 0.7592 | -557.0 | -498.5 | |
| 0.00 | 2.13 | 0.00 | 1.62 | 18.83 | 301.99 | -46.35 | 64.16 | 0.7633 | -627.0 | -470.5 | |
| 0.00 | 1.28 | 0.00 | 0.98 | 18.83 | 301.72 | -46.63 | 64.26 | 0.7661 | -453.0 | -386.9 | |
| 3.75 | 6.72 | 2.90 | 5.21 | 19.59 | 301.39 | -46.95 | 63.45 | 0.7720 | -650.3 | -460.6 | |
| 0.00 | 1.11 | 0.00 | 0.83 | 16.46 | 302.38 | -45.97 | 67.02 | 0.7513 | -557.0 | -377.9 | |
| 0.00 | 2.55 | 0.00 | 1.91 | 16.27 | 302.39 | -45.95 | 67.25 | 0.7506 | -550.0 | -407.1 | |
| 0.00 | 1.02 | 0.00 | 0.80 | 19.56 | 301.12 | -47.22 | 63.59 | 0.7746 | -372.0 | -318.9 | |
| 0.00 | 1.62 | 0.00 | 1.27 | 20.00 | 300.76 | -47.58 | 63.18 | 0.7797 | -501.0 | -444.8 | |
| 0.00 | 2.21 | 0.00 | 1.75 | 20.16 | 300.56 | -47.79 | 63.06 | 0.7822 | -320.0 | -254.2 | |
| 0.00 | 1.36 | 0.00 | 1.13 | 22.34 | 299.16 | -49.19 | 60.97 | 0.8028 | -318.0 | -301.6 | |
| 0.00 | 1.36 | 0.00 | 1.04 | 16.60 | 301.03 | -47.32 | 67.31 | 0.7659 | -384.0 | -363.4 | |
| 0.00 | 1.11 | 0.00 | 0.93 | 22.55 | 298.37 | -49.98 | 61.03 | 0.8107 | -376.0 | -333.5 | |
| 0.00 | 1.19 | 0.00 | 1.10 | 26.89 | 295.69 | -52.65 | 57.04 | 0.8471 | 497.0 | 429.9 | |
| 0.00 | 0.60 | 0.00 | 0.54 | 25.96 | 296.19 | -52.15 | 57.90 | 0.8402 | 667.0 | 622.1 | |
| 0.00 | 1.19 | 0.00 | 1.05 | 24.34 | 296.84 | -51.50 | 59.50 | 0.8297 | 678.0 | 602.8 | |
| 0.00 | 0.68 | 0.00 | 0.63 | 26.57 | 295.42 | -52.93 | 57.50 | 0.8483 | 426.0 | 357.1 | |
| 4.00 | 5.02 | 3.39 | 4.26 | 22.04 | 297.82 | -50.53 | 61.82 | 0.8140 | 702.3 | 645.2 | |
| 0.00 | 0.94 | 0.00 | 0.85 | 25.34 | 295.83 | -52.52 | 58.73 | 0.8412 | 584.0 | 553.6 | |
| 0.00 | 1.45 | 0.00 | 1.26 | 22.88 | 296.97 | -51.37 | 61.13 | 0.8240 | 536.0 | 474.0 | |
| 0.00 | 0.94 | 0.00 | 0.81 | 22.21 | 296.76 | -51.58 | 61.99 | 0.8239 | 607.0 | 492.3 | |
| 0.00 | 2.30 | 0.00 | 2.07 | 23.51 | 295.68 | -52.66 | 60.85 | 0.8369 | 597.0 | 480.9 | |
| 0.00 | 0.77 | 0.00 | 0.69 | 23.19 | 295.76 | -52.58 | 61.20 | 0.8353 | 649.0 | 560.3 | |
| 0.00 | 0.60 | 0.00 | 0.55 | 24.04 | 294.99 | -53.35 | 60.48 | 0.8441 | 390.0 | 376.0 | |
| 0.00 | 1.19 | 0.00 | 1.08 | 23.42 | 295.36 | -52.98 | 61.06 | 0.8393 | 658.0 | 597.2 | |
| 0.00 | 0.85 | 0.00 | 0.77 | 22.42 | 295.23 | -53.12 | 62.25 | 0.8377 | 569.0 | 480.4 | |
| 0.00 | 2.38 | 0.00 | 2.23 | 23.21 | 293.95 | -54.39 | 61.75 | 0.8503 | 572.0 | 422.5 | |
| 0.00 | 0.94 | 0.00 | 0.88 | 23.02 | 293.74 | -54.61 | 62.03 | 0.8516 | 319.0 | 246.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
