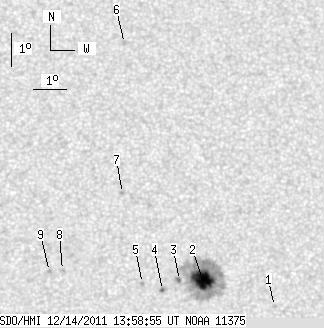

SDO HMI 2011-12-14 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.05 | 148.35 | 13.28 | 75.65 | 8.48 | 357.35 | 10.10 | 312.86 | 0.2383 | -1021.5 | -418.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.65 | 7.55 | 359.70 | 12.46 | 304.10 | 0.2594 | -755.0 | -581.1 | |
| 23.66 | 133.19 | 12.06 | 67.92 | 8.35 | 357.54 | 10.29 | 311.92 | 0.2387 | -1424.0 | -433.7 | |
| 1.45 | 3.23 | 0.74 | 1.65 | 8.32 | 356.84 | 9.60 | 313.80 | 0.2296 | -920.2 | -766.5 | |
| 0.94 | 2.30 | 0.48 | 1.17 | 8.02 | 356.32 | 9.07 | 314.42 | 0.2197 | -981.5 | -872.7 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 8.23 | 355.72 | 8.48 | 317.03 | 0.2150 | -1000.0 | -838.3 | |
| 0.00 | 2.30 | 0.00 | 1.20 | 15.49 | 355.40 | 8.15 | 334.00 | 0.3131 | -798.0 | -631.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 10.92 | 355.18 | 7.94 | 326.25 | 0.2452 | -802.0 | -663.4 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 8.61 | 353.33 | 6.08 | 327.33 | 0.1949 | 916.0 | 684.4 | |
| 0.00 | 2.13 | 0.00 | 1.07 | 8.58 | 352.94 | 5.69 | 328.95 | 0.1909 | 1030.0 | 802.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
