SDO HMI 2011-12-14 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.85 | 155.37 | 14.79 | 79.62 | 8.31 | 357.14 | 11.54 | 308.94 | 0.2551 | -684.5 | -327.3 | |
|
previous
or next observation for the same group /

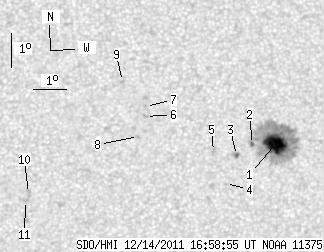

back to the solar disc SDO HMI 2011-12-14 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.87 | 139.20 | 13.27 | 71.41 | 8.34 | 357.58 | 11.99 | 307.65 | 0.2608 | -1421.1 | -402.5 | |
| 1.45 | -1.00 | 0.74 | -1.00 | 8.31 | 356.88 | 11.29 | 309.22 | 0.2512 | -975.6 | 999999 | |
| 1.53 | 3.32 | 0.78 | 1.69 | 7.98 | 356.39 | 10.80 | 309.41 | 0.2412 | -944.4 | -805.3 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 7.15 | 356.03 | 10.44 | 307.51 | 0.2277 | 683.0 | 572.6 | |
| 0.00 | 2.72 | 0.00 | 1.39 | 8.10 | 355.70 | 10.10 | 311.66 | 0.2335 | -976.0 | -612.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 9.14 | 353.67 | 8.07 | 321.21 | 0.2224 | 807.0 | 680.5 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 9.44 | 353.67 | 8.08 | 322.03 | 0.2264 | 825.0 | 741.0 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 8.54 | 353.44 | 7.85 | 320.22 | 0.2121 | 901.0 | 706.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 10.19 | 353.00 | 7.40 | 326.35 | 0.2299 | 846.0 | 637.8 | |
| 0.00 | 3.06 | 0.00 | 1.54 | 6.84 | 350.12 | 4.53 | 329.44 | 0.1550 | 714.0 | 646.1 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.63 | 350.03 | 4.44 | 329.25 | 0.1511 | 918.0 | 770.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
