SDO HMI 2011-12-14 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.88 | 404.08 | 37.07 | 211.19 | -18.19 | 352.14 | 7.10 | 201.47 | 0.3228 | 1083.9 | 460.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

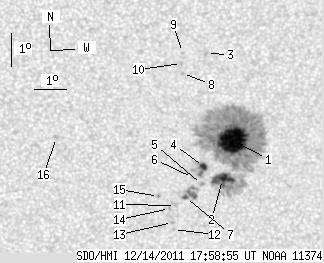

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.84 | 361.17 | 25.50 | 188.73 | -17.82 | 352.35 | 7.31 | 202.49 | 0.3182 | 1470.0 | 446.9 | |
| 16.34 | -1.00 | 8.58 | -1.00 | -19.03 | 352.09 | 7.05 | 200.35 | 0.3351 | 1041.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.15 | 351.45 | 6.41 | 203.50 | 0.2716 | -763.0 | -524.6 | |
| 3.74 | 12.85 | 1.96 | 6.73 | -18.62 | 351.48 | 6.44 | 199.14 | 0.3255 | 1205.5 | 777.2 | |
| 0.00 | 1.96 | 0.00 | 1.03 | -19.18 | 351.44 | 6.40 | 198.45 | 0.3339 | 775.0 | 637.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -18.96 | 351.15 | 6.11 | 197.88 | 0.3291 | 855.0 | 668.4 | |
| 1.96 | 15.06 | 1.03 | 7.92 | -19.59 | 350.95 | 5.91 | 196.76 | 0.3379 | 926.9 | 783.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -15.76 | 350.73 | 5.69 | 200.29 | 0.2765 | -785.0 | -536.5 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -15.12 | 350.71 | 5.67 | 201.10 | 0.2664 | -721.0 | -661.3 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -15.46 | 350.69 | 5.65 | 200.56 | 0.2715 | -796.0 | -623.1 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -19.84 | 350.64 | 5.60 | 195.73 | 0.3404 | 924.0 | 802.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -20.59 | 350.61 | 5.57 | 195.02 | 0.3521 | 650.0 | 414.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -20.37 | 350.57 | 5.53 | 195.09 | 0.3484 | 825.0 | 732.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -19.93 | 350.46 | 5.42 | 195.15 | 0.3410 | 773.0 | 675.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -19.56 | 350.10 | 5.06 | 194.49 | 0.3336 | 878.0 | 703.0 | |
| 0.00 | 1.79 | 0.00 | 0.93 | -17.73 | 346.88 | 1.84 | 186.00 | 0.2941 | 831.0 | 632.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
