SDO HMI 2011-12-14 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.39 | 72.82 | 7.58 | 54.95 | 21.37 | 300.37 | -44.67 | 60.31 | 0.7543 | -202.6 | -149.1 | |
|
previous
or next observation for the same group /

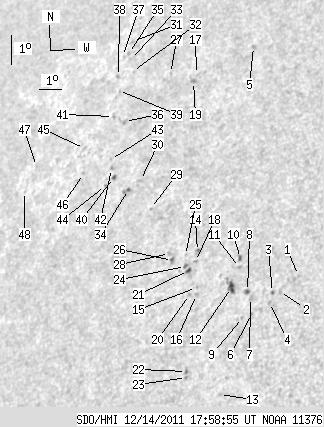

back to the solar disc SDO HMI 2011-12-14 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.63 | 19.39 | 306.27 | -38.77 | 59.91 | 0.6851 | -624.0 | -538.2 | |
| 0.00 | 1.19 | 0.00 | 0.81 | 18.89 | 305.64 | -39.40 | 60.92 | 0.6895 | -753.0 | -573.6 | |
| 0.00 | 1.19 | 0.00 | 0.82 | 18.86 | 305.37 | -39.67 | 61.10 | 0.6924 | -779.0 | -653.9 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 18.55 | 305.33 | -39.71 | 61.54 | 0.6913 | -669.0 | -585.9 | |
| 0.00 | 1.79 | 0.00 | 1.38 | 26.83 | 301.55 | -43.49 | 53.14 | 0.7699 | -590.0 | -467.8 | |
| 0.00 | 1.28 | 0.00 | 0.88 | 18.21 | 304.69 | -40.35 | 62.31 | 0.6969 | -657.0 | -506.6 | |
| 0.00 | 2.47 | 0.00 | 1.71 | 18.72 | 304.51 | -40.53 | 61.73 | 0.7012 | -636.0 | -559.8 | |
| 0.60 | 2.21 | 0.41 | 1.54 | 18.91 | 304.33 | -40.71 | 61.57 | 0.7040 | -751.1 | -608.6 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 18.09 | 304.36 | -40.68 | 62.64 | 0.7000 | -674.0 | -625.8 | |
| 1.28 | 2.47 | 0.90 | 1.74 | 19.95 | 303.72 | -41.32 | 60.51 | 0.7155 | -535.9 | -459.9 | |
| 0.00 | 1.45 | 0.00 | 1.02 | 19.67 | 303.76 | -41.28 | 60.85 | 0.7136 | -641.0 | -537.6 | |
| 4.17 | 8.08 | 2.93 | 5.69 | 19.04 | 303.63 | -41.41 | 61.74 | 0.7123 | -762.0 | -607.6 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 15.71 | 304.05 | -40.99 | 66.01 | 0.6935 | -723.0 | -610.4 | |
| 0.00 | 2.04 | 0.00 | 1.49 | 20.19 | 301.80 | -43.24 | 61.11 | 0.7366 | -641.0 | -555.1 | |
| 0.00 | 1.02 | 0.00 | 0.73 | 19.05 | 302.14 | -42.90 | 62.42 | 0.7283 | -638.0 | -541.0 | |
| 0.00 | 1.36 | 0.00 | 0.98 | 18.83 | 302.21 | -42.83 | 62.67 | 0.7266 | -688.0 | -581.1 | |
| 0.00 | 0.77 | 0.00 | 0.61 | 25.93 | 299.34 | -45.70 | 55.28 | 0.7854 | -315.0 | -299.0 | |
| 0.00 | 1.28 | 0.00 | 0.93 | 19.88 | 301.83 | -43.21 | 61.51 | 0.7351 | -730.0 | -572.4 | |
| 0.00 | 1.96 | 0.00 | 1.56 | 25.70 | 299.32 | -45.72 | 55.56 | 0.7846 | -507.0 | -420.1 | |
| 0.00 | 0.85 | 0.00 | 0.61 | 18.84 | 301.91 | -43.13 | 62.80 | 0.7298 | -518.0 | -427.2 | |
| 1.62 | 2.55 | 1.18 | 1.86 | 19.59 | 301.62 | -43.42 | 61.96 | 0.7360 | -643.2 | -506.1 | |
| 0.00 | 1.62 | 0.00 | 1.14 | 16.44 | 302.50 | -42.54 | 65.70 | 0.7139 | -581.0 | -476.1 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 16.25 | 302.55 | -42.49 | 65.93 | 0.7127 | -605.0 | -507.8 | |
| 0.34 | 2.13 | 0.25 | 1.56 | 19.72 | 301.44 | -43.59 | 61.87 | 0.7384 | -573.8 | -431.0 | |
| 0.00 | 0.60 | 0.00 | 0.44 | 20.07 | 301.32 | -43.72 | 61.49 | 0.7411 | -354.0 | -298.3 | |
| 0.00 | 2.55 | 0.00 | 1.89 | 19.92 | 300.81 | -44.23 | 61.91 | 0.7458 | -567.0 | -388.3 | |
| 0.00 | 1.02 | 0.00 | 0.83 | 25.98 | 298.08 | -46.96 | 55.80 | 0.7967 | -433.0 | -320.9 | |
| 0.00 | 0.85 | 0.00 | 0.63 | 20.14 | 300.60 | -44.44 | 61.72 | 0.7489 | -474.0 | -433.4 | |
| 0.00 | 1.02 | 0.00 | 0.79 | 21.59 | 299.18 | -45.85 | 60.54 | 0.7687 | -450.0 | -390.7 | |
| 0.00 | 1.28 | 0.00 | 1.01 | 22.49 | 298.34 | -46.70 | 59.80 | 0.7804 | -481.0 | -321.9 | |
| 0.00 | 1.11 | 0.00 | 0.96 | 27.07 | 295.57 | -49.47 | 55.61 | 0.8223 | 550.0 | 480.2 | |
| 0.00 | 0.60 | 0.00 | 0.50 | 26.07 | 296.16 | -48.88 | 56.51 | 0.8136 | 577.0 | 560.7 | |
| 0.00 | 1.11 | 0.00 | 0.95 | 26.47 | 295.83 | -49.21 | 56.19 | 0.8179 | 370.0 | 427.5 | |
| 1.02 | 3.66 | 0.81 | 2.90 | 22.21 | 297.90 | -47.14 | 60.32 | 0.7834 | 788.2 | 618.4 | |
| 0.00 | 1.02 | 0.00 | 0.88 | 26.67 | 295.61 | -49.43 | 56.05 | 0.8205 | 570.0 | 456.0 | |
| 0.00 | 1.87 | 0.00 | 1.55 | 24.42 | 296.65 | -48.39 | 58.22 | 0.8032 | 667.0 | 559.7 | |
| 0.00 | 0.60 | 0.00 | 0.52 | 26.57 | 295.36 | -49.68 | 56.26 | 0.8222 | 410.0 | 403.7 | |
| 0.00 | 1.45 | 0.00 | 1.24 | 25.91 | 295.54 | -49.50 | 56.94 | 0.8183 | 571.0 | 524.8 | |
| 0.00 | 0.51 | 0.00 | 0.43 | 25.45 | 295.80 | -49.24 | 57.37 | 0.8143 | 439.0 | 561.5 | |
| 1.36 | 1.87 | 1.10 | 1.51 | 22.60 | 297.01 | -48.03 | 60.21 | 0.7932 | 691.9 | 713.2 | |
| 0.00 | 1.45 | 0.00 | 1.21 | 24.59 | 296.02 | -49.02 | 58.27 | 0.8094 | 710.0 | 598.5 | |
| 0.00 | 0.94 | 0.00 | 0.76 | 22.90 | 296.77 | -48.27 | 59.96 | 0.7965 | 647.0 | 544.2 | |
| 0.00 | 1.11 | 0.00 | 0.91 | 23.19 | 296.58 | -48.46 | 59.69 | 0.7992 | 455.0 | 400.7 | |
| 0.00 | 1.11 | 0.00 | 0.90 | 22.35 | 296.74 | -48.30 | 60.62 | 0.7948 | 544.0 | 462.5 | |
| 0.00 | 1.28 | 0.00 | 1.08 | 23.56 | 295.11 | -49.93 | 59.82 | 0.8137 | 486.0 | 395.2 | |
| 0.00 | 1.02 | 0.00 | 0.85 | 22.75 | 295.47 | -49.57 | 60.63 | 0.8077 | 613.0 | 598.0 | |
| 0.00 | 0.85 | 0.00 | 0.75 | 23.01 | 292.94 | -52.10 | 61.23 | 0.8307 | 373.0 | 322.7 | |
| 0.00 | 0.68 | 0.00 | 0.60 | 22.21 | 292.75 | -52.29 | 62.22 | 0.8301 | 348.0 | 279.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
