SDO HMI 2011-12-14 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 10.13 | 0.33 | 5.65 | -19.22 | 323.00 | -20.39 | 133.77 | 0.4589 | -553.5 | -368.3 | |
|
previous
or next observation for the same group /

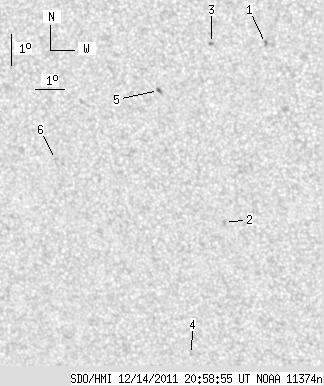

back to the solar disc SDO HMI 2011-12-14 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.10 | -16.58 | 325.86 | -17.52 | 133.33 | 0.3984 | 832.0 | 731.7 | |
| 0.00 | 1.87 | 0.00 | 1.06 | -22.14 | 323.84 | -19.54 | 139.64 | 0.4803 | -783.0 | -620.2 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -16.57 | 324.11 | -19.27 | 130.71 | 0.4192 | -883.0 | -661.4 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -26.39 | 321.99 | -21.40 | 142.92 | 0.5442 | -729.0 | -678.9 | |
| 0.60 | 2.30 | 0.33 | 1.28 | -18.01 | 322.19 | -21.19 | 130.78 | 0.4558 | -885.6 | -712.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -20.13 | 318.38 | -25.00 | 129.92 | 0.5195 | -763.0 | -616.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
