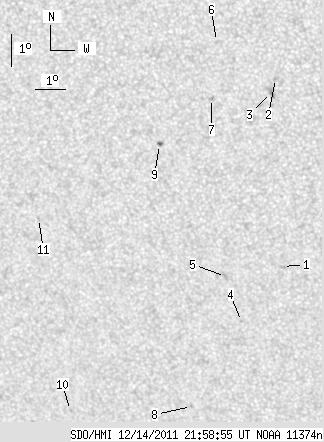

SDO HMI 2011-12-14 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 20.00 | 0.80 | 11.05 | -19.21 | 323.99 | -18.84 | 135.82 | 0.4414 | -297.8 | -38.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.85 | -21.87 | 325.77 | -17.06 | 142.89 | 0.4530 | -550.0 | -575.4 | |
| 0.00 | 2.13 | 0.00 | 1.14 | -16.03 | 326.16 | -16.67 | 133.64 | 0.3827 | 770.0 | 618.4 | |
| 0.00 | 5.19 | 0.00 | 2.79 | -16.46 | 325.96 | -16.87 | 134.14 | 0.3895 | 925.0 | 667.7 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -23.62 | 324.16 | -18.67 | 142.92 | 0.4885 | -759.0 | -567.8 | |
| 0.00 | 3.06 | 0.00 | 1.72 | -22.18 | 323.82 | -19.00 | 140.43 | 0.4754 | -748.0 | -545.7 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -14.90 | 324.36 | -18.47 | 128.54 | 0.3931 | 706.0 | 574.8 | |
| 0.00 | 1.70 | 0.00 | 0.93 | -16.64 | 324.03 | -18.80 | 131.51 | 0.4140 | -857.0 | -603.5 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -26.36 | 321.96 | -20.86 | 143.54 | 0.5392 | -739.0 | -639.8 | |
| 1.45 | 1.70 | 0.80 | 0.94 | -18.05 | 322.17 | -20.66 | 131.51 | 0.4499 | -804.9 | -842.7 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -26.47 | 317.60 | -25.22 | 138.69 | 0.5801 | -698.0 | -538.4 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -20.33 | 317.72 | -25.11 | 130.11 | 0.5223 | -622.0 | -472.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
