SDO HMI 2011-12-14 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.81 | 137.02 | 11.90 | 71.42 | 8.37 | 357.37 | 15.65 | 300.95 | 0.3125 | -866.7 | -401.4 | |
|
previous
or next observation for the same group /

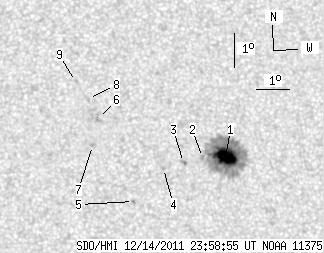

back to the solar disc SDO HMI 2011-12-14 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.81 | 122.64 | 11.90 | 64.00 | 8.32 | 357.68 | 15.96 | 300.26 | 0.3163 | -1384.3 | -461.1 | |
| 0.00 | 1.79 | 0.00 | 0.93 | 8.29 | 356.97 | 15.24 | 301.30 | 0.3058 | -1003.0 | -792.5 | |
| 0.00 | 2.30 | 0.00 | 1.19 | 8.14 | 356.38 | 14.65 | 301.86 | 0.2961 | -990.0 | -823.6 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 7.96 | 355.75 | 14.03 | 302.42 | 0.2857 | -852.0 | -629.3 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 6.97 | 354.80 | 13.08 | 301.10 | 0.2635 | -928.0 | -717.5 | |
| 0.00 | 3.40 | 0.00 | 1.75 | 9.44 | 353.82 | 12.09 | 310.78 | 0.2741 | 777.0 | 731.7 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 8.63 | 353.60 | 11.88 | 308.92 | 0.2628 | 996.0 | 727.7 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 10.04 | 353.53 | 11.81 | 313.10 | 0.2772 | 614.0 | 479.9 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 10.55 | 353.15 | 11.43 | 315.37 | 0.2785 | 611.0 | 556.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
