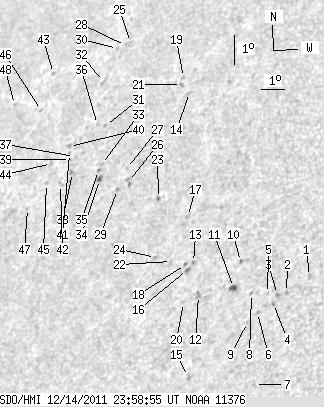

SDO HMI 2011-12-14 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.59 | 75.82 | 3.25 | 55.69 | 21.93 | 298.99 | -42.73 | 58.64 | 0.7372 | -68.5 | -46.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.21 | 19.45 | 306.58 | -35.15 | 57.61 | 0.6451 | -756.0 | -626.5 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 18.96 | 305.82 | -35.91 | 58.79 | 0.6509 | -800.0 | -661.1 | |
| 0.00 | 1.70 | 0.00 | 1.11 | 18.90 | 305.48 | -36.24 | 59.08 | 0.6543 | -907.0 | -724.1 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 18.62 | 305.40 | -36.33 | 59.52 | 0.6537 | -798.0 | -621.8 | |
| 0.00 | 1.02 | 0.00 | 0.67 | 18.93 | 305.09 | -36.64 | 59.27 | 0.6590 | -575.0 | -441.8 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 18.34 | 304.85 | -36.88 | 60.24 | 0.6586 | -768.0 | -691.0 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 16.10 | 305.25 | -36.47 | 63.19 | 0.6423 | -377.0 | -453.7 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 18.94 | 304.46 | -37.27 | 59.64 | 0.6662 | -550.0 | -504.6 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 18.03 | 304.53 | -37.19 | 60.85 | 0.6605 | -626.0 | -510.6 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 19.95 | 303.75 | -37.98 | 58.67 | 0.6795 | -858.0 | -628.6 | |
| 2.72 | 3.40 | 1.82 | 2.28 | 19.13 | 303.69 | -38.03 | 59.81 | 0.6758 | -784.2 | -715.4 | |
| 0.00 | 3.23 | 0.00 | 2.20 | 18.90 | 302.36 | -39.37 | 60.86 | 0.6894 | -729.0 | -587.6 | |
| 0.00 | 1.28 | 0.00 | 0.88 | 19.94 | 301.85 | -39.88 | 59.74 | 0.7001 | -671.0 | -549.6 | |
| 0.00 | 1.28 | 0.00 | 0.95 | 25.44 | 299.67 | -42.06 | 54.01 | 0.7500 | -583.0 | -474.8 | |
| 0.00 | 2.38 | 0.00 | 1.59 | 16.37 | 302.61 | -39.11 | 64.18 | 0.6747 | -671.0 | -528.6 | |
| 0.00 | 2.72 | 0.00 | 1.88 | 19.72 | 301.67 | -40.06 | 60.13 | 0.7010 | -819.0 | -563.2 | |
| 0.00 | 2.38 | 0.00 | 1.68 | 21.41 | 301.13 | -40.60 | 58.22 | 0.7151 | -482.0 | -415.3 | |
| 0.00 | 1.19 | 0.00 | 0.83 | 19.88 | 301.54 | -40.19 | 59.99 | 0.7032 | -588.0 | -491.6 | |
| 0.00 | 1.11 | 0.00 | 0.84 | 25.94 | 299.18 | -42.54 | 53.68 | 0.7571 | -476.0 | -424.5 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 18.68 | 301.81 | -39.92 | 61.43 | 0.6945 | -425.0 | -354.4 | |
| 0.00 | 1.53 | 0.00 | 1.15 | 25.70 | 299.20 | -42.53 | 53.94 | 0.7557 | -565.0 | -491.9 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 19.98 | 300.92 | -40.80 | 60.17 | 0.7103 | -313.0 | -367.1 | |
| 0.00 | 1.79 | 0.00 | 1.30 | 22.00 | 299.69 | -42.04 | 58.22 | 0.7327 | -705.0 | -542.8 | |
| 0.00 | 1.19 | 0.00 | 0.85 | 20.12 | 300.21 | -41.51 | 60.36 | 0.7185 | -537.0 | -398.1 | |
| 0.00 | 1.36 | 0.00 | 1.09 | 27.13 | 296.16 | -45.57 | 53.80 | 0.7899 | 600.0 | 559.6 | |
| 0.00 | 3.15 | 0.00 | 2.35 | 22.56 | 298.17 | -43.56 | 58.27 | 0.7505 | -403.0 | -408.5 | |
| 0.00 | 0.60 | 0.00 | 0.45 | 22.98 | 297.91 | -43.82 | 57.88 | 0.7550 | -395.0 | -327.1 | |
| 0.00 | 0.43 | 0.00 | 0.34 | 27.04 | 295.97 | -45.76 | 54.00 | 0.7910 | 625.0 | 604.6 | |
| 0.00 | 1.28 | 0.00 | 0.96 | 22.31 | 297.78 | -43.95 | 58.77 | 0.7532 | 790.0 | 690.1 | |
| 0.00 | 1.19 | 0.00 | 0.96 | 26.94 | 295.64 | -46.09 | 54.26 | 0.7935 | 659.0 | 572.9 | |
| 0.00 | 1.11 | 0.00 | 0.87 | 24.39 | 296.34 | -45.39 | 56.92 | 0.7761 | 670.0 | 571.4 | |
| 0.00 | 2.55 | 0.00 | 2.05 | 25.85 | 295.54 | -46.19 | 55.58 | 0.7896 | 549.0 | 429.7 | |
| 0.00 | 1.45 | 0.00 | 1.11 | 23.12 | 296.72 | -45.01 | 58.26 | 0.7670 | 709.0 | 570.2 | |
| 1.87 | 2.89 | 1.43 | 2.21 | 22.64 | 296.83 | -44.89 | 58.80 | 0.7639 | 762.8 | 705.5 | |
| 0.00 | 1.53 | 0.00 | 1.18 | 22.93 | 296.67 | -45.06 | 58.52 | 0.7667 | 749.0 | 604.1 | |
| 0.00 | 0.94 | 0.00 | 0.74 | 24.43 | 295.95 | -45.78 | 57.05 | 0.7798 | 639.0 | 597.5 | |
| 0.00 | 0.51 | 0.00 | 0.40 | 23.40 | 295.35 | -46.37 | 58.55 | 0.7811 | 729.0 | 638.5 | |
| 0.00 | 3.40 | 0.00 | 2.67 | 22.88 | 295.49 | -46.23 | 59.10 | 0.7777 | 802.0 | 540.1 | |
| 0.00 | 1.02 | 0.00 | 0.81 | 23.30 | 295.21 | -46.52 | 58.72 | 0.7820 | 615.0 | 536.0 | |
| 0.00 | 2.38 | 0.00 | 1.90 | 23.73 | 294.96 | -46.76 | 58.32 | 0.7860 | 500.0 | 388.6 | |
| 0.00 | 1.11 | 0.00 | 0.88 | 23.50 | 295.07 | -46.66 | 58.55 | 0.7841 | 468.0 | 419.6 | |
| 0.00 | 2.21 | 0.00 | 1.74 | 22.50 | 295.10 | -46.62 | 59.73 | 0.7799 | 532.0 | 445.9 | |
| 0.00 | 1.36 | 0.00 | 1.15 | 26.14 | 292.94 | -48.79 | 56.36 | 0.8133 | 506.0 | 400.7 | |
| 0.00 | 1.79 | 0.00 | 1.44 | 23.18 | 294.36 | -47.36 | 59.22 | 0.7894 | 517.0 | 372.4 | |
| 0.00 | 1.19 | 0.00 | 0.95 | 22.54 | 294.42 | -47.30 | 59.96 | 0.7864 | 541.0 | 435.9 | |
| 0.00 | 0.85 | 0.00 | 0.71 | 24.92 | 293.01 | -48.72 | 57.74 | 0.8081 | 351.0 | 356.8 | |
| 0.00 | 1.02 | 0.00 | 0.82 | 21.75 | 293.88 | -47.85 | 61.13 | 0.7886 | 377.0 | 361.0 | |
| 0.00 | 1.19 | 0.00 | 1.03 | 25.14 | 291.53 | -50.19 | 58.07 | 0.8216 | 412.0 | 329.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
