SDO HMI 2011-12-15 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 15.92 | 0.83 | 8.84 | -19.88 | 321.61 | -19.02 | 136.88 | 0.4487 | -405.6 | -218.1 | |
|
previous
or next observation for the same group /

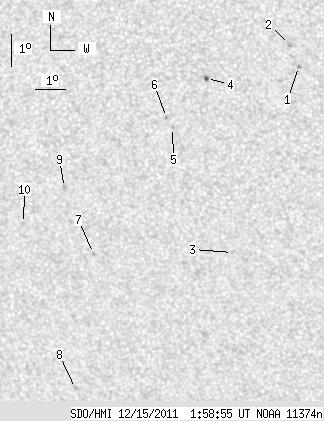

back to the solar disc SDO HMI 2011-12-15 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.63 | -16.51 | 326.50 | -14.13 | 139.10 | 0.3590 | 984.0 | 891.1 | |
| 0.00 | 2.81 | 0.00 | 1.49 | -15.83 | 326.26 | -14.36 | 137.32 | 0.3536 | 880.0 | 633.3 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -22.29 | 323.79 | -16.84 | 143.78 | 0.4556 | -646.0 | -460.2 | |
| 1.53 | 1.79 | 0.83 | 0.96 | -16.86 | 323.53 | -17.10 | 134.48 | 0.3961 | -720.9 | -763.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -18.37 | 322.27 | -18.36 | 135.26 | 0.4265 | -771.0 | -568.9 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -18.06 | 322.11 | -18.52 | 134.47 | 0.4250 | -909.0 | -685.4 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -22.30 | 319.09 | -21.54 | 137.18 | 0.5018 | -609.0 | -449.4 | |
| 0.00 | 2.30 | 0.00 | 1.37 | -26.65 | 317.64 | -22.98 | 141.34 | 0.5608 | -676.0 | -458.2 | |
| 0.00 | 2.64 | 0.00 | 1.50 | -20.22 | 318.43 | -22.20 | 133.16 | 0.4881 | -892.0 | -629.4 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -21.34 | 316.84 | -23.79 | 133.06 | 0.5163 | -750.0 | -549.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
