SDO HMI 2011-12-15 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.54 | 377.53 | 30.52 | 200.22 | -18.15 | 352.17 | 12.09 | 213.81 | 0.3595 | 1180.3 | 459.6 | |
|
previous
or next observation for the same group /

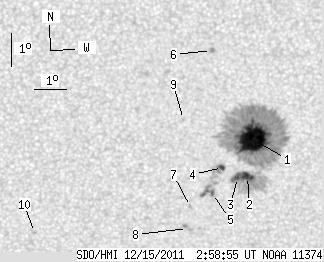

back to the solar disc SDO HMI 2011-12-15 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.78 | 344.58 | 23.73 | 182.73 | -17.88 | 352.31 | 12.23 | 214.55 | 0.3571 | 1446.7 | 444.4 | |
| 6.55 | -1.00 | 3.49 | -1.00 | -19.02 | 352.23 | 12.16 | 212.55 | 0.3716 | 1018.3 | 999999 | |
| 2.21 | -1.00 | 1.18 | -1.00 | -19.05 | 351.92 | 11.84 | 211.83 | 0.3693 | 1061.2 | 999999 | |
| 2.38 | 14.13 | 1.26 | 7.50 | -18.74 | 351.42 | 11.34 | 211.22 | 0.3609 | 1161.9 | 830.3 | |
| 1.62 | 9.45 | 0.86 | 5.03 | -19.55 | 351.16 | 11.08 | 209.45 | 0.3698 | 773.1 | 826.6 | |
| 0.00 | 2.64 | 0.00 | 1.37 | -15.15 | 350.86 | 10.78 | 216.16 | 0.3073 | -1010.0 | -831.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.96 | 350.48 | 10.40 | 207.41 | 0.3703 | 891.0 | 731.7 | |
| 0.00 | 3.49 | 0.00 | 1.87 | -20.65 | 350.43 | 10.35 | 206.41 | 0.3798 | 656.0 | 725.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -17.26 | 350.10 | 10.02 | 210.45 | 0.3292 | -661.0 | -515.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -20.78 | 345.57 | 5.49 | 194.70 | 0.3538 | 783.0 | 699.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
