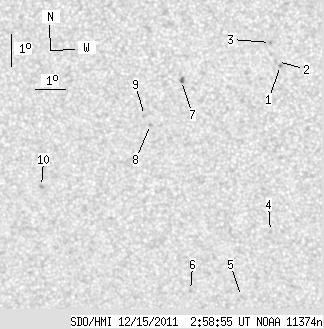

SDO HMI 2011-12-15 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.70 | 12.69 | 0.92 | 6.91 | -19.18 | 323.24 | -16.84 | 138.97 | 0.4199 | -282.9 | -331.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-15 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.63 | -16.52 | 326.62 | -13.46 | 140.45 | 0.3519 | 1060.0 | 869.6 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -16.40 | 326.54 | -13.54 | 140.04 | 0.3514 | 459.0 | 552.5 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -15.81 | 326.36 | -13.72 | 138.54 | 0.3463 | 1011.0 | 753.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.68 | 325.86 | -14.22 | 147.31 | 0.4245 | -846.0 | -629.5 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -23.74 | 324.67 | -15.41 | 147.99 | 0.4609 | -744.0 | -567.8 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.54 | 322.98 | -17.10 | 145.08 | 0.4728 | -589.0 | -596.2 | |
| 1.70 | 2.13 | 0.92 | 1.14 | -16.97 | 323.43 | -16.65 | 135.40 | 0.3921 | -820.1 | -569.4 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.32 | 322.29 | -17.79 | 136.02 | 0.4195 | -793.0 | -655.6 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -18.04 | 322.12 | -17.96 | 135.27 | 0.4184 | -712.0 | -563.2 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -20.23 | 318.42 | -21.66 | 133.84 | 0.4821 | -898.0 | -738.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
