SDO HMI 2011-12-15 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.96 | 384.52 | 32.95 | 204.38 | -18.22 | 352.15 | 12.62 | 214.81 | 0.3653 | 1032.2 | 436.0 | |
|
previous
or next observation for the same group /

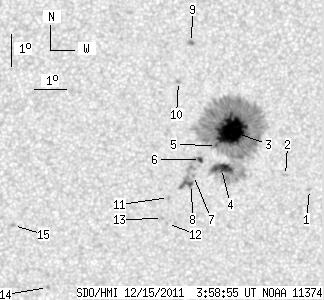

back to the solar disc SDO HMI 2011-12-15 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.42 | -19.67 | 354.99 | 15.46 | 217.88 | 0.4106 | -868.0 | -737.8 | |
| 0.00 | 1.87 | 0.00 | 1.01 | -19.24 | 354.17 | 14.64 | 217.10 | 0.3973 | -747.0 | -591.7 | |
| 45.71 | 348.94 | 24.28 | 185.44 | -17.88 | 352.33 | 12.80 | 215.75 | 0.3624 | 1435.4 | 431.8 | |
| 12.51 | -3.00 | 6.68 | -3.00 | -19.03 | 352.10 | 12.57 | 213.40 | 0.3752 | 1011.2 | 999999 | |
| 0.85 | -3.00 | 0.45 | -3.00 | -18.31 | 351.89 | 12.35 | 214.10 | 0.3639 | 752.5 | 999999 | |
| 2.04 | 21.88 | 1.09 | 11.65 | -18.75 | 351.41 | 11.87 | 212.38 | 0.3654 | 1097.7 | 816.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -19.25 | 351.22 | 11.69 | 211.23 | 0.3705 | 883.0 | 722.8 | |
| 0.85 | -6.00 | 0.45 | -6.00 | -19.53 | 351.18 | 11.64 | 210.72 | 0.3740 | 722.8 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.11 | -15.16 | 350.90 | 11.37 | 217.60 | 0.3131 | -1095.0 | -898.4 | |
| 0.00 | 1.87 | 0.00 | 0.98 | -16.35 | 350.56 | 11.03 | 214.50 | 0.3255 | -868.0 | -649.0 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -19.93 | 350.47 | 10.94 | 208.63 | 0.3740 | 900.0 | 685.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.75 | 350.50 | 10.96 | 207.60 | 0.3856 | 675.0 | 547.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -20.59 | 350.33 | 10.79 | 207.44 | 0.3821 | 842.0 | 668.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -22.78 | 346.77 | 7.23 | 197.28 | 0.3925 | 865.0 | 663.8 | |
| 0.00 | 1.70 | 0.00 | 0.90 | -20.82 | 345.59 | 6.05 | 196.11 | 0.3567 | 868.0 | 681.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
