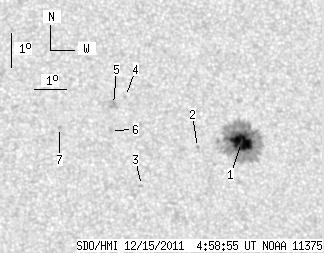

SDO HMI 2011-12-15 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.43 | 137.32 | 10.83 | 72.65 | 8.36 | 357.42 | 18.43 | 297.13 | 0.3530 | -810.8 | -381.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-15 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.43 | 124.80 | 10.83 | 66.14 | 8.30 | 357.76 | 18.77 | 296.49 | 0.3574 | -1421.2 | -478.5 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 8.14 | 356.37 | 17.39 | 297.83 | 0.3360 | -805.0 | -671.4 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 7.00 | 354.59 | 15.60 | 297.09 | 0.3012 | -887.0 | -653.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 9.66 | 354.20 | 15.22 | 305.18 | 0.3180 | 660.0 | 517.7 | |
| 0.00 | 6.13 | 0.00 | 3.19 | 9.41 | 353.82 | 14.83 | 305.22 | 0.3105 | 944.0 | 738.8 | |
| 0.00 | 1.79 | 0.00 | 0.93 | 8.64 | 353.69 | 14.71 | 303.30 | 0.3017 | 873.0 | 626.3 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 8.72 | 352.13 | 13.14 | 306.52 | 0.2809 | 960.0 | 694.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
