SDO HMI 2011-12-15 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.61 | 357.13 | 30.37 | 191.54 | -18.15 | 352.18 | 14.83 | 219.34 | 0.3856 | 1142.6 | 437.7 | |
|
previous
or next observation for the same group /

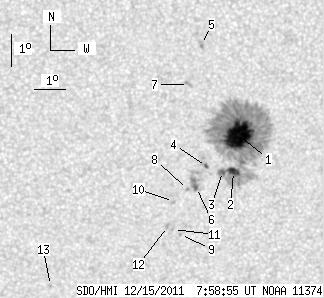

back to the solar disc SDO HMI 2011-12-15 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.80 | 328.18 | 24.55 | 176.03 | -17.90 | 352.32 | 14.97 | 220.02 | 0.3840 | 1435.5 | 436.8 | |
| 6.21 | -1.00 | 3.35 | -1.00 | -19.01 | 352.26 | 14.91 | 218.00 | 0.3969 | 1018.7 | 999999 | |
| 1.96 | -1.00 | 1.05 | -1.00 | -19.01 | 351.91 | 14.56 | 217.35 | 0.3934 | 986.7 | 999999 | |
| 1.36 | 3.23 | 0.73 | 1.73 | -18.86 | 351.38 | 14.03 | 216.61 | 0.3863 | 1043.7 | 748.0 | |
| 0.00 | 2.64 | 0.00 | 1.39 | -15.11 | 350.94 | 13.59 | 222.68 | 0.3360 | -1077.0 | -812.3 | |
| 1.28 | 12.77 | 0.69 | 6.86 | -19.52 | 351.11 | 13.76 | 215.05 | 0.3921 | 778.1 | 828.8 | |
| 0.00 | 3.06 | 0.00 | 1.62 | -16.34 | 350.61 | 13.26 | 219.55 | 0.3472 | -696.0 | -642.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.58 | 350.83 | 13.48 | 214.41 | 0.3903 | 892.0 | 728.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -20.99 | 350.73 | 13.38 | 212.14 | 0.4078 | 823.0 | 663.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.95 | 350.41 | 13.06 | 213.02 | 0.3915 | 713.0 | 666.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -20.83 | 350.49 | 13.14 | 211.90 | 0.4037 | 634.0 | 587.8 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -20.74 | 350.28 | 12.93 | 211.64 | 0.4007 | 778.0 | 703.0 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -22.61 | 346.64 | 9.29 | 201.94 | 0.4007 | 784.0 | 623.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
