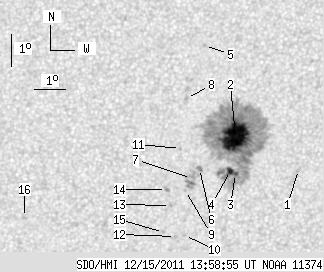

SDO HMI 2011-12-15 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.96 | 366.49 | 25.63 | 199.88 | -18.15 | 352.17 | 18.10 | 224.83 | 0.4207 | 1064.0 | 441.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-15 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.99 | -18.94 | 354.50 | 20.43 | 226.78 | 0.4551 | -655.0 | -573.5 | |
| 42.20 | 333.03 | 23.01 | 181.68 | -17.93 | 352.31 | 18.24 | 225.43 | 0.4198 | 1415.6 | 425.7 | |
| 1.36 | -2.00 | 0.75 | -2.00 | -19.08 | 352.43 | 18.36 | 223.63 | 0.4334 | 817.8 | 999999 | |
| 3.40 | -2.00 | 1.87 | -2.00 | -18.98 | 352.26 | 18.19 | 223.52 | 0.4305 | 965.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -15.15 | 351.04 | 16.97 | 228.82 | 0.3760 | -847.0 | -684.3 | |
| 0.00 | 2.98 | 0.00 | 1.62 | -18.93 | 351.24 | 17.17 | 222.03 | 0.4188 | 1189.0 | 937.8 | |
| 0.00 | 15.15 | 0.00 | 8.26 | -19.24 | 351.01 | 16.94 | 221.14 | 0.4200 | 765.0 | 797.6 | |
| 0.00 | 1.96 | 0.00 | 1.05 | -16.77 | 350.61 | 16.53 | 224.87 | 0.3879 | -750.0 | -573.3 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -19.61 | 350.85 | 16.78 | 220.27 | 0.4226 | 886.0 | 684.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -21.02 | 350.98 | 16.91 | 218.26 | 0.4403 | 705.0 | 579.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.31 | 350.56 | 16.49 | 221.97 | 0.4046 | 813.0 | 634.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -21.05 | 350.69 | 16.62 | 217.74 | 0.4379 | 674.0 | 475.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -20.08 | 350.41 | 16.34 | 218.79 | 0.4237 | 848.0 | 779.3 | |
| 0.00 | 2.47 | 0.00 | 1.34 | -19.58 | 350.23 | 16.16 | 219.28 | 0.4160 | 947.0 | 770.5 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -20.93 | 350.28 | 16.21 | 217.26 | 0.4325 | 773.0 | 654.8 | |
| 0.00 | 1.87 | 0.00 | 1.00 | -20.47 | 345.72 | 11.65 | 209.44 | 0.3864 | 764.0 | 598.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
