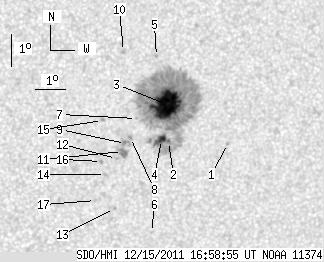

SDO HMI 2011-12-15 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.02 | 371.92 | 29.76 | 204.90 | -18.16 | 352.17 | 19.76 | 227.23 | 0.4395 | 1072.0 | 410.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-15 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.67 | -19.16 | 354.45 | 22.03 | 228.46 | 0.4754 | -613.0 | -516.9 | |
| 1.45 | 342.57 | 0.80 | 188.75 | -19.10 | 352.47 | 20.05 | 226.00 | 0.4523 | 704.1 | 399.1 | |
| 48.40 | -2.00 | 26.65 | -2.00 | -17.96 | 352.26 | 19.85 | 227.70 | 0.4385 | 1376.7 | 999999 | |
| 4.17 | -2.00 | 2.31 | -2.00 | -19.04 | 352.23 | 19.81 | 225.77 | 0.4490 | 1023.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -16.49 | 351.77 | 19.36 | 229.74 | 0.4182 | -753.0 | -449.6 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -21.96 | 352.29 | 19.87 | 221.23 | 0.4803 | 565.0 | 411.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -18.40 | 351.33 | 18.91 | 225.61 | 0.4322 | 761.0 | 549.1 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -18.99 | 351.20 | 18.78 | 224.40 | 0.4369 | 1108.0 | 960.3 | |
| 0.00 | 5.27 | 0.00 | 2.90 | -19.17 | 351.05 | 18.64 | 223.88 | 0.4373 | 1091.0 | 890.3 | |
| 0.00 | 2.47 | 0.00 | 1.33 | -16.34 | 350.69 | 18.27 | 228.46 | 0.4036 | -762.0 | -468.4 | |
| 0.00 | 7.91 | 0.00 | 4.36 | -19.42 | 350.99 | 18.57 | 223.36 | 0.4393 | 939.0 | 715.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -19.64 | 350.81 | 18.40 | 222.74 | 0.4398 | 828.0 | 634.5 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -21.21 | 350.94 | 18.53 | 220.45 | 0.4584 | 775.0 | 663.4 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -20.14 | 350.51 | 18.09 | 221.47 | 0.4421 | 839.0 | 629.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -18.46 | 350.22 | 17.80 | 223.83 | 0.4205 | 819.0 | 672.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.74 | 350.33 | 17.91 | 221.85 | 0.4357 | 950.0 | 769.8 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -20.96 | 350.28 | 17.86 | 219.84 | 0.4490 | 749.0 | 518.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
