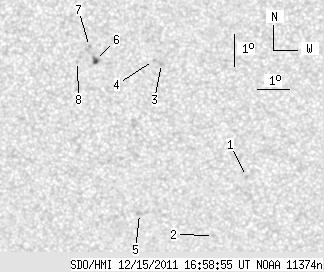

SDO HMI 2011-12-15 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.13 | 13.02 | 1.12 | 6.88 | -19.60 | 323.84 | -8.57 | 155.98 | 0.3527 | -419.1 | -273.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-15 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.45 | -21.59 | 327.25 | -5.16 | 166.66 | 0.3644 | -819.0 | -640.2 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -23.46 | 326.12 | -6.30 | 165.28 | 0.3981 | -810.0 | -669.2 | |
| 0.00 | 1.96 | 0.00 | 1.02 | -18.06 | 324.71 | -7.70 | 156.62 | 0.3226 | 744.0 | 624.9 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -17.97 | 324.47 | -7.95 | 155.84 | 0.3228 | 710.0 | 572.5 | |
| 0.00 | 2.38 | 0.00 | 1.29 | -22.76 | 323.76 | -8.66 | 159.54 | 0.3988 | -477.0 | -402.0 | |
| 2.13 | 3.66 | 1.12 | 1.92 | -17.97 | 322.65 | -9.77 | 151.17 | 0.3362 | -1025.4 | -754.6 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.54 | 322.48 | -9.93 | 150.10 | 0.3314 | -932.0 | -621.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.00 | 322.08 | -10.34 | 149.85 | 0.3413 | -671.0 | -503.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
