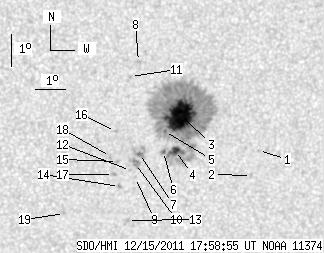

SDO HMI 2011-12-15 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.61 | 365.72 | 32.40 | 202.10 | -18.18 | 352.12 | 20.26 | 227.88 | 0.4455 | 1027.2 | 418.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-15 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.53 | -19.03 | 355.03 | 23.17 | 230.02 | 0.4874 | -635.0 | -495.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -19.81 | 354.91 | 23.05 | 228.60 | 0.4931 | -728.0 | -503.9 | |
| 51.46 | 327.33 | 28.44 | 180.92 | -17.96 | 352.27 | 20.41 | 228.47 | 0.4450 | 1354.7 | 406.9 | |
| 3.15 | -3.00 | 1.75 | -3.00 | -19.04 | 352.24 | 20.38 | 226.55 | 0.4553 | 1046.6 | 999999 | |
| 1.19 | -3.00 | 0.66 | -3.00 | -18.46 | 351.80 | 19.94 | 226.96 | 0.4445 | 621.7 | 999999 | |
| 1.53 | -3.00 | 0.85 | -3.00 | -19.08 | 351.85 | 19.98 | 225.96 | 0.4512 | 856.8 | 999999 | |
| 1.28 | 11.74 | 0.70 | 6.48 | -19.14 | 351.06 | 19.20 | 224.75 | 0.4431 | 1048.8 | 761.1 | |
| 0.00 | 2.89 | 0.00 | 1.57 | -16.31 | 350.71 | 18.85 | 229.38 | 0.4103 | -573.0 | -438.2 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -19.89 | 351.02 | 19.16 | 223.45 | 0.4506 | 683.0 | 504.7 | |
| 0.00 | 7.32 | 0.00 | 4.04 | -19.45 | 350.97 | 19.10 | 224.09 | 0.4454 | 824.0 | 758.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -16.77 | 350.50 | 18.64 | 228.18 | 0.4123 | -655.0 | -515.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.67 | 350.83 | 18.96 | 223.53 | 0.4462 | 790.0 | 616.2 | |
| 0.00 | 1.96 | 0.00 | 1.09 | -21.24 | 350.93 | 19.07 | 221.19 | 0.4642 | 825.0 | 581.5 | |
| 0.00 | 1.87 | 0.00 | 1.04 | -20.17 | 350.52 | 18.66 | 222.27 | 0.4484 | 760.0 | 624.6 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -19.39 | 350.36 | 18.50 | 223.31 | 0.4382 | 941.0 | 706.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -18.46 | 350.19 | 18.33 | 224.64 | 0.4263 | 724.0 | 432.4 | |
| 0.00 | 2.13 | 0.00 | 1.17 | -19.80 | 350.28 | 18.42 | 222.52 | 0.4417 | 831.0 | 718.1 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -19.24 | 350.12 | 18.25 | 223.20 | 0.4338 | 873.0 | 705.3 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -21.03 | 348.81 | 16.94 | 218.31 | 0.4406 | 771.0 | 610.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
