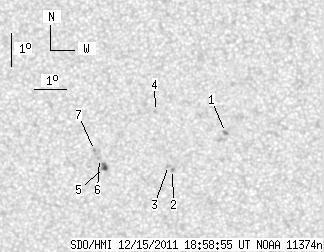

SDO HMI 2011-12-15 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.13 | 12.25 | 1.11 | 6.39 | -17.58 | 323.78 | -7.53 | 156.60 | 0.3147 | 131.6 | 177.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-15 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 0.97 | -16.94 | 326.33 | -4.98 | 163.22 | 0.2893 | 1010.0 | 766.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.07 | 324.64 | -6.67 | 159.47 | 0.3162 | 879.0 | 762.9 | |
| 0.00 | 1.87 | 0.00 | 0.98 | -17.95 | 324.52 | -6.79 | 158.98 | 0.3150 | 829.0 | 660.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -16.29 | 324.18 | -7.13 | 155.78 | 0.2918 | 746.0 | 618.6 | |
| 2.13 | 3.49 | 1.11 | 1.83 | -18.01 | 322.52 | -8.79 | 153.66 | 0.3292 | -1043.6 | -958.6 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -17.73 | 322.37 | -8.94 | 152.90 | 0.3262 | -404.0 | -457.7 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -17.48 | 322.23 | -9.08 | 152.15 | 0.3238 | -966.0 | -817.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
