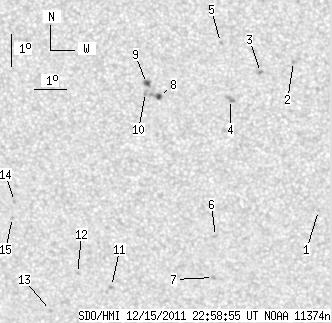

SDO HMI 2011-12-15 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.59 | 28.85 | 2.40 | 15.21 | -19.71 | 322.57 | -6.53 | 161.86 | 0.3414 | -451.9 | -281.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-15 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.45 | -21.60 | 327.31 | -1.79 | 175.28 | 0.3552 | -881.0 | -691.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -16.96 | 326.59 | -2.51 | 171.35 | 0.2801 | 969.0 | 803.0 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -17.30 | 325.56 | -3.54 | 168.17 | 0.2888 | 1072.0 | 832.3 | |
| 0.00 | 4.00 | 0.00 | 2.08 | -18.13 | 324.61 | -4.49 | 165.86 | 0.3059 | 1041.0 | 780.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -16.38 | 324.35 | -4.76 | 163.35 | 0.2788 | -949.0 | -746.9 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -22.41 | 324.00 | -5.10 | 167.35 | 0.3766 | -851.0 | -678.6 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -23.72 | 323.89 | -5.21 | 167.87 | 0.3975 | -894.0 | -700.8 | |
| 2.04 | 4.76 | 1.07 | 2.49 | -18.04 | 322.40 | -6.70 | 159.31 | 0.3154 | -962.8 | -925.8 | |
| 2.55 | 3.57 | 1.33 | 1.86 | -17.63 | 322.01 | -7.09 | 157.72 | 0.3116 | -1000.6 | -839.7 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -17.91 | 321.97 | -7.13 | 157.95 | 0.3161 | -856.0 | -684.7 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -24.00 | 320.56 | -8.54 | 160.89 | 0.4162 | -704.0 | -643.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -23.58 | 319.48 | -9.62 | 158.30 | 0.4160 | -726.0 | -526.1 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -24.77 | 318.50 | -10.60 | 157.53 | 0.4390 | -332.0 | -261.4 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -21.30 | 317.61 | -11.49 | 151.92 | 0.3960 | -851.0 | -699.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -21.80 | 317.51 | -11.60 | 152.34 | 0.4037 | -636.0 | -495.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
