SDO HMI 2011-12-16 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.39 | 41.97 | 5.91 | 21.89 | -18.61 | 323.61 | -4.39 | 166.73 | 0.3138 | -321.2 | -226.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

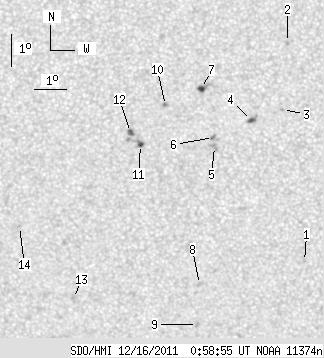

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.59 | -21.71 | 327.35 | -0.65 | 178.29 | 0.3558 | -892.0 | -714.0 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -14.94 | 326.86 | -1.14 | 175.43 | 0.2431 | 700.0 | 636.4 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -16.98 | 326.69 | -1.31 | 175.47 | 0.2779 | 919.0 | 713.4 | |
| 2.55 | 4.34 | 1.32 | 2.24 | -17.32 | 325.73 | -2.27 | 172.35 | 0.2852 | 967.6 | 849.9 | |
| 0.00 | 4.34 | 0.00 | 2.25 | -18.12 | 324.57 | -3.43 | 169.08 | 0.3016 | 893.0 | 685.6 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -17.84 | 324.54 | -3.46 | 168.81 | 0.2971 | 1125.0 | 927.8 | |
| 3.06 | 6.64 | 1.58 | 3.42 | -16.34 | 324.20 | -3.80 | 166.51 | 0.2737 | -924.8 | -752.3 | |
| 0.00 | 2.81 | 0.00 | 1.50 | -22.44 | 323.99 | -4.01 | 169.99 | 0.3732 | -771.0 | -588.1 | |
| 0.00 | 2.21 | 0.00 | 1.19 | -23.71 | 323.89 | -4.11 | 170.36 | 0.3937 | -928.0 | -675.8 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -16.86 | 323.08 | -4.92 | 163.30 | 0.2870 | -1111.0 | -917.4 | |
| 2.38 | 6.81 | 1.24 | 3.54 | -18.06 | 322.27 | -5.73 | 162.09 | 0.3101 | -1014.7 | -885.0 | |
| 3.40 | 3.66 | 1.77 | 1.90 | -17.69 | 321.97 | -6.03 | 160.81 | 0.3059 | -1042.5 | -782.3 | |
| 0.00 | 2.89 | 0.00 | 1.56 | -22.88 | 319.92 | -8.08 | 160.86 | 0.3967 | -783.0 | -632.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -20.60 | 318.33 | -9.67 | 154.92 | 0.3726 | -975.0 | -715.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
