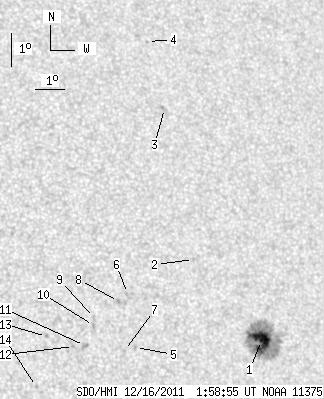

SDO HMI 2011-12-16 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.77 | 119.50 | 12.12 | 69.35 | 8.59 | 357.32 | 29.86 | 288.48 | 0.5214 | -253.0 | -214.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.77 | 98.89 | 12.12 | 57.79 | 8.32 | 358.14 | 30.68 | 287.50 | 0.5316 | -1112.1 | -398.1 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 10.73 | 356.02 | 28.57 | 293.15 | 0.5131 | -788.0 | -673.7 | |
| 0.00 | 2.55 | 0.00 | 1.49 | 15.32 | 355.60 | 28.15 | 301.49 | 0.5357 | 753.0 | 600.3 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 17.38 | 355.33 | 27.88 | 305.07 | 0.5474 | -644.0 | -398.7 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 8.07 | 353.84 | 26.38 | 289.48 | 0.4686 | 729.0 | 614.4 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 9.68 | 353.69 | 26.24 | 292.82 | 0.4749 | 773.0 | 681.9 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 7.98 | 353.46 | 26.01 | 289.53 | 0.4628 | 729.0 | 607.3 | |
| 0.00 | 1.79 | 0.00 | 1.00 | 9.44 | 353.37 | 25.92 | 292.58 | 0.4690 | 841.0 | 699.4 | |
| 0.00 | 2.04 | 0.00 | 1.13 | 8.96 | 352.54 | 25.09 | 292.21 | 0.4543 | 692.0 | 619.1 | |
| 0.00 | 1.87 | 0.00 | 1.04 | 8.72 | 352.49 | 25.04 | 291.75 | 0.4523 | 893.0 | 729.5 | |
| 0.00 | 3.49 | 0.00 | 1.93 | 8.12 | 352.15 | 24.70 | 290.74 | 0.4442 | 806.0 | 684.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 8.08 | 351.79 | 24.34 | 290.94 | 0.4387 | 857.0 | 734.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 8.38 | 350.93 | 23.48 | 292.25 | 0.4277 | 788.0 | 617.4 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 6.88 | 350.52 | 23.06 | 289.21 | 0.4137 | 693.0 | 549.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
