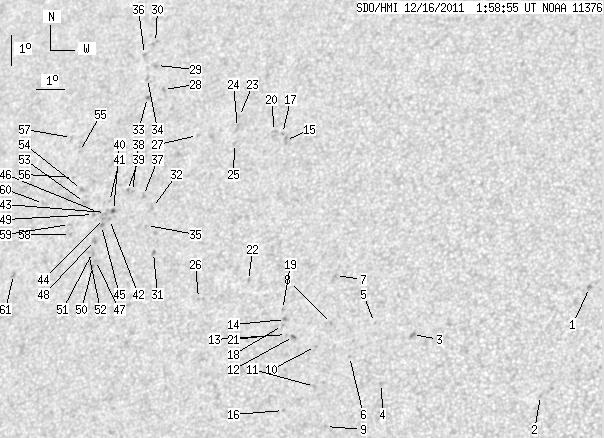

SDO HMI 2011-12-16 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 90.67 | 0.76 | 56.75 | 22.98 | 297.98 | -29.47 | 47.97 | 0.6085 | 126.5 | 196.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.31 | 20.62 | 312.48 | -14.97 | 33.32 | 0.4419 | 875.0 | 712.2 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 17.24 | 311.22 | -16.23 | 40.54 | 0.4125 | 868.0 | 617.1 | |
| 0.00 | 2.38 | 0.00 | 1.34 | 19.17 | 306.81 | -20.64 | 44.10 | 0.4804 | -974.0 | -745.3 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 17.64 | 305.98 | -21.47 | 47.62 | 0.4742 | -728.0 | -590.8 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 19.56 | 305.48 | -21.97 | 45.22 | 0.4986 | -682.0 | -561.7 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 18.50 | 304.79 | -22.66 | 47.72 | 0.4959 | -816.0 | -558.6 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 21.06 | 303.92 | -23.53 | 44.89 | 0.5301 | -703.0 | -583.8 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 19.54 | 304.03 | -23.42 | 47.01 | 0.5143 | -751.0 | -592.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 16.32 | 304.27 | -23.18 | 51.90 | 0.4820 | -736.0 | -610.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 18.82 | 303.59 | -23.86 | 48.61 | 0.5124 | -754.0 | -642.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 17.57 | 303.74 | -23.71 | 50.43 | 0.4994 | -823.0 | -643.5 | |
| 0.00 | 1.87 | 0.00 | 1.09 | 19.14 | 302.79 | -24.66 | 49.01 | 0.5244 | -806.0 | -720.4 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 19.20 | 302.54 | -24.92 | 49.18 | 0.5278 | -529.0 | -418.5 | |
| 0.00 | 1.96 | 0.00 | 1.14 | 19.68 | 302.42 | -25.03 | 48.59 | 0.5333 | -806.0 | -605.2 | |
| 0.00 | 2.55 | 0.00 | 1.57 | 25.45 | 301.27 | -26.18 | 41.93 | 0.5985 | -718.0 | -711.3 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 16.83 | 302.79 | -24.66 | 52.68 | 0.5042 | -715.0 | -614.6 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 25.68 | 301.10 | -26.35 | 41.81 | 0.6023 | -786.0 | -613.4 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 19.49 | 302.35 | -25.10 | 48.95 | 0.5324 | -642.0 | -511.5 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 19.99 | 302.27 | -25.19 | 48.29 | 0.5379 | -667.0 | -487.1 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 25.75 | 300.79 | -26.66 | 42.04 | 0.6058 | -601.0 | -527.0 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 19.18 | 301.99 | -25.46 | 49.81 | 0.5338 | -688.0 | -540.3 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 20.92 | 300.91 | -26.55 | 48.34 | 0.5610 | -730.0 | -586.2 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 26.26 | 299.37 | -28.08 | 42.79 | 0.6237 | -671.0 | -528.8 | |
| 0.00 | 2.81 | 0.00 | 1.77 | 25.90 | 299.39 | -28.06 | 43.22 | 0.6203 | -806.0 | -621.8 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 25.37 | 299.41 | -28.04 | 43.85 | 0.6154 | -726.0 | -521.5 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 20.37 | 299.24 | -28.21 | 50.74 | 0.5746 | -445.0 | -368.7 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 25.65 | 297.96 | -29.49 | 44.84 | 0.6317 | -527.0 | -425.0 | |
| 0.00 | 1.70 | 0.00 | 1.12 | 27.19 | 296.20 | -31.25 | 44.47 | 0.6610 | 796.0 | 719.6 | |
| 0.00 | 1.79 | 0.00 | 1.19 | 28.00 | 295.67 | -31.78 | 43.95 | 0.6724 | 804.0 | 617.8 | |
| 0.00 | 1.79 | 0.00 | 1.21 | 28.79 | 295.36 | -32.09 | 43.29 | 0.6814 | 583.0 | 610.1 | |
| 0.00 | 1.87 | 0.00 | 1.16 | 21.85 | 297.28 | -30.17 | 50.40 | 0.6077 | 790.0 | 652.5 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 23.30 | 296.89 | -30.56 | 48.78 | 0.6232 | 726.0 | 611.2 | |
| 0.00 | 1.79 | 0.00 | 1.18 | 26.93 | 295.66 | -31.79 | 45.23 | 0.6639 | 783.0 | 641.3 | |
| 0.00 | 1.96 | 0.00 | 1.30 | 27.57 | 295.46 | -31.99 | 44.64 | 0.6708 | 545.0 | 450.6 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 22.72 | 296.81 | -30.64 | 49.62 | 0.6194 | 750.0 | 595.6 | |
| 0.00 | 1.62 | 0.00 | 1.09 | 28.38 | 295.07 | -32.39 | 43.99 | 0.6808 | 528.0 | 454.6 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 23.70 | 296.45 | -31.00 | 48.63 | 0.6308 | 862.0 | 711.9 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 23.83 | 296.00 | -31.45 | 48.83 | 0.6364 | 765.0 | 674.8 | |
| 0.00 | 1.62 | 0.00 | 1.04 | 23.86 | 295.80 | -31.65 | 48.95 | 0.6387 | 757.0 | 657.6 | |
| 1.19 | 1.87 | 0.76 | 1.20 | 23.22 | 295.44 | -32.01 | 50.08 | 0.6375 | 708.0 | 667.8 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 23.51 | 295.21 | -32.24 | 49.88 | 0.6421 | 356.0 | 385.0 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 22.93 | 295.37 | -32.08 | 50.52 | 0.6361 | 782.0 | 726.2 | |
| 0.00 | 3.40 | 0.00 | 2.19 | 23.16 | 295.16 | -32.30 | 50.39 | 0.6400 | 710.0 | 636.0 | |
| 0.00 | 1.87 | 0.00 | 1.20 | 22.96 | 295.13 | -32.32 | 50.66 | 0.6388 | 883.0 | 818.6 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 22.74 | 295.12 | -32.34 | 50.97 | 0.6373 | 901.0 | 834.4 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 23.16 | 294.89 | -32.56 | 50.59 | 0.6428 | 634.0 | 566.3 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 21.61 | 295.18 | -32.27 | 52.43 | 0.6286 | 799.0 | 699.9 | |
| 0.00 | 2.81 | 0.00 | 1.80 | 22.26 | 294.98 | -32.47 | 51.72 | 0.6353 | 879.0 | 690.0 | |
| 0.00 | 1.53 | 0.00 | 0.99 | 23.10 | 294.71 | -32.74 | 50.81 | 0.6441 | 685.0 | 577.4 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 21.42 | 295.12 | -32.34 | 52.74 | 0.6279 | 840.0 | 748.3 | |
| 0.00 | 2.55 | 0.00 | 1.63 | 21.87 | 295.00 | -32.45 | 52.22 | 0.6323 | 779.0 | 617.3 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 21.87 | 294.85 | -32.60 | 52.33 | 0.6340 | 715.0 | 619.9 | |
| 0.00 | 2.30 | 0.00 | 1.50 | 23.49 | 294.26 | -33.19 | 50.64 | 0.6517 | 632.0 | 507.6 | |
| 0.00 | 2.30 | 0.00 | 1.51 | 23.92 | 294.02 | -33.43 | 50.28 | 0.6571 | 647.0 | 592.3 | |
| 0.00 | 0.85 | 0.00 | 0.57 | 25.16 | 293.56 | -33.89 | 49.04 | 0.6707 | 781.0 | 609.6 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 24.31 | 293.59 | -33.86 | 50.09 | 0.6643 | 663.0 | 468.7 | |
| 0.00 | 1.19 | 0.00 | 0.80 | 25.63 | 293.09 | -34.36 | 48.81 | 0.6785 | 521.0 | 474.5 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 22.46 | 294.01 | -33.44 | 52.18 | 0.6470 | 595.0 | 559.2 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 22.78 | 293.88 | -33.57 | 51.85 | 0.6506 | 531.0 | 448.4 | |
| 0.00 | 1.79 | 0.00 | 1.19 | 23.48 | 292.67 | -34.78 | 51.83 | 0.6679 | 615.0 | 425.1 | |
| 0.00 | 2.38 | 0.00 | 1.56 | 21.20 | 292.16 | -35.29 | 55.18 | 0.6585 | 598.0 | 444.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
