SDO HMI 2011-12-16 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.62 | 50.48 | 9.09 | 26.13 | -17.50 | 324.11 | -2.25 | 172.63 | 0.2888 | -202.0 | -69.8 | |
|
previous
or next observation for the same group /

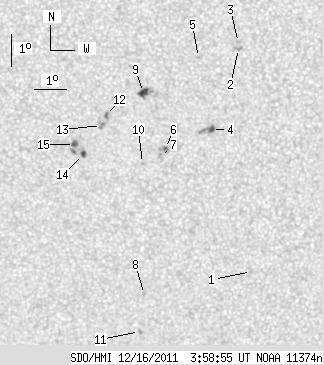

back to the solar disc SDO HMI 2011-12-16 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.54 | -21.74 | 327.39 | 1.03 | 182.71 | 0.3561 | -872.0 | -613.6 | |
| 0.00 | 2.89 | 0.00 | 1.48 | -14.85 | 326.95 | 0.60 | 182.41 | 0.2406 | 977.0 | 783.7 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -14.67 | 326.95 | 0.60 | 182.44 | 0.2375 | 1064.0 | 710.3 | |
| 2.98 | 6.81 | 1.54 | 3.51 | -17.32 | 326.13 | -0.23 | 179.22 | 0.2823 | 1062.9 | 721.8 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -15.12 | 325.73 | -0.62 | 177.53 | 0.2453 | 776.0 | 523.7 | |
| 1.45 | 4.09 | 0.75 | 2.12 | -17.91 | 324.70 | -1.66 | 174.60 | 0.2934 | 996.6 | 904.5 | |
| 0.00 | 2.98 | 0.00 | 1.55 | -18.19 | 324.54 | -1.81 | 174.19 | 0.2983 | 733.0 | 670.3 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -22.47 | 323.98 | -2.38 | 174.02 | 0.3696 | -779.0 | -611.5 | |
| 6.04 | 9.70 | 3.10 | 4.98 | -16.19 | 324.04 | -2.32 | 171.57 | 0.2660 | -1040.6 | -718.7 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -18.37 | 323.98 | -2.38 | 172.49 | 0.3025 | 716.0 | 571.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -23.65 | 323.80 | -2.56 | 173.94 | 0.3889 | -879.0 | -718.6 | |
| 1.62 | 2.81 | 0.83 | 1.45 | -16.89 | 322.89 | -3.47 | 168.06 | 0.2811 | -983.5 | -875.1 | |
| 0.00 | 3.40 | 0.00 | 1.76 | -17.20 | 322.73 | -3.63 | 167.77 | 0.2867 | -846.0 | -766.6 | |
| 2.72 | 4.77 | 1.41 | 2.48 | -18.09 | 322.15 | -4.21 | 166.65 | 0.3034 | -1009.2 | -879.3 | |
| 2.81 | 6.55 | 1.46 | 3.40 | -17.78 | 321.88 | -4.48 | 165.56 | 0.2995 | -1002.0 | -735.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
