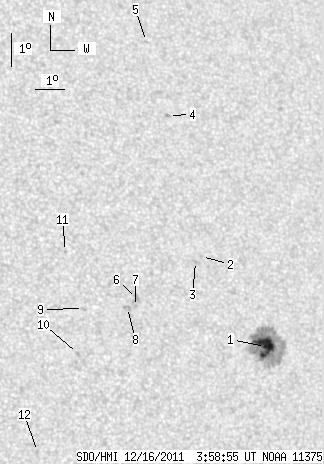

SDO HMI 2011-12-16 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.26 | 122.06 | 11.97 | 71.73 | 8.60 | 357.44 | 31.09 | 287.90 | 0.5388 | -417.8 | -225.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.26 | 102.56 | 11.97 | 60.64 | 8.31 | 358.16 | 31.81 | 286.98 | 0.5475 | -1125.2 | -364.2 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 10.99 | 356.20 | 29.85 | 292.82 | 0.5322 | -602.0 | -482.8 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 10.84 | 355.98 | 29.62 | 292.69 | 0.5283 | -711.0 | -640.5 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 15.28 | 355.62 | 29.26 | 300.54 | 0.5497 | 752.0 | 627.9 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 17.56 | 355.22 | 28.87 | 304.50 | 0.5607 | -705.0 | -539.1 | |
| 0.00 | 4.17 | 0.00 | 2.37 | 9.71 | 353.85 | 27.49 | 292.01 | 0.4928 | 694.0 | 595.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 9.47 | 353.79 | 27.44 | 291.58 | 0.4908 | 800.0 | 687.1 | |
| 0.00 | 2.89 | 0.00 | 1.64 | 9.44 | 353.52 | 27.16 | 291.70 | 0.4868 | 670.0 | 699.0 | |
| 0.00 | 2.13 | 0.00 | 1.19 | 9.39 | 352.05 | 25.69 | 292.68 | 0.4655 | 744.0 | 509.2 | |
| 0.00 | 1.70 | 0.00 | 0.95 | 8.04 | 351.75 | 25.39 | 290.12 | 0.4541 | 902.0 | 761.5 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 11.10 | 351.60 | 25.24 | 296.44 | 0.4693 | 662.0 | 474.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 5.12 | 350.28 | 23.93 | 284.58 | 0.4192 | 667.0 | 560.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
