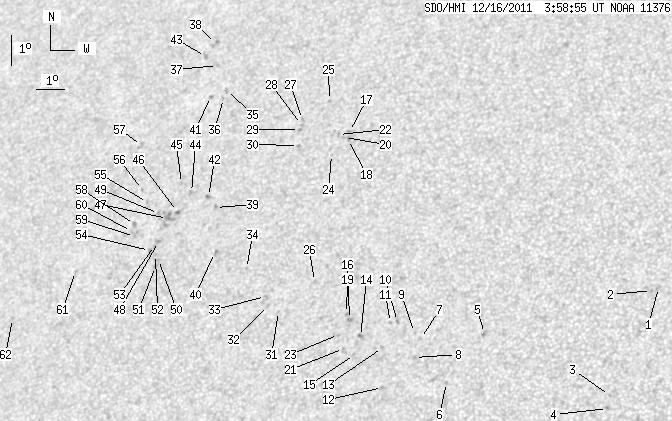

SDO HMI 2011-12-16 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 95.76 | 0.16 | 58.86 | 22.71 | 298.57 | -27.79 | 46.67 | 0.5889 | 32.1 | 167.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.03 | 20.63 | 312.53 | -13.83 | 31.28 | 0.4327 | 744.0 | 611.8 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 20.54 | 312.31 | -14.05 | 31.79 | 0.4332 | 811.0 | 610.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 17.25 | 311.25 | -15.11 | 38.53 | 0.4013 | 837.0 | 631.4 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 16.84 | 311.22 | -15.14 | 39.25 | 0.3967 | 907.0 | 684.3 | |
| 0.00 | 2.72 | 0.00 | 1.52 | 19.21 | 306.98 | -19.38 | 42.28 | 0.4677 | -864.0 | -724.2 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 17.68 | 305.91 | -20.45 | 46.19 | 0.4632 | -763.0 | -654.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 19.07 | 304.86 | -21.49 | 45.36 | 0.4887 | -792.0 | -508.9 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 18.47 | 304.74 | -21.61 | 46.44 | 0.4841 | -793.0 | -623.7 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 19.26 | 304.64 | -21.72 | 45.35 | 0.4931 | -716.0 | -598.9 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 19.61 | 304.01 | -22.34 | 45.60 | 0.5034 | -740.0 | -530.6 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 19.58 | 303.78 | -22.58 | 45.92 | 0.5056 | -798.0 | -597.1 | |
| 0.00 | 1.87 | 0.00 | 1.06 | 17.54 | 303.80 | -22.56 | 49.11 | 0.4859 | -834.0 | -692.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 18.79 | 303.62 | -22.73 | 47.32 | 0.4997 | -761.0 | -629.3 | |
| 0.00 | 2.13 | 0.00 | 1.23 | 19.14 | 302.82 | -23.53 | 47.71 | 0.5119 | -874.0 | -736.0 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 18.58 | 302.70 | -23.65 | 48.73 | 0.5081 | -491.0 | -528.9 | |
| 0.00 | 1.87 | 0.00 | 1.09 | 19.68 | 302.36 | -23.99 | 47.42 | 0.5221 | -763.0 | -685.4 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 25.76 | 301.19 | -25.16 | 40.48 | 0.5922 | -697.0 | -581.5 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 25.49 | 301.22 | -25.14 | 40.78 | 0.5894 | -897.0 | -744.3 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 19.87 | 302.23 | -24.13 | 47.29 | 0.5253 | -693.0 | -597.9 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 25.56 | 301.06 | -25.30 | 40.86 | 0.5915 | -602.0 | -552.0 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 18.77 | 302.30 | -24.06 | 48.88 | 0.5144 | -612.0 | -528.5 | |
| 0.00 | 1.96 | 0.00 | 1.20 | 25.66 | 300.82 | -25.54 | 40.99 | 0.5947 | -691.0 | -571.9 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 19.21 | 302.06 | -24.30 | 48.47 | 0.5211 | -690.0 | -520.3 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 25.00 | 300.71 | -25.64 | 41.92 | 0.5894 | -554.0 | -431.8 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 26.79 | 300.22 | -26.14 | 40.24 | 0.6111 | -621.0 | -513.7 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 20.90 | 300.94 | -25.41 | 47.19 | 0.5487 | -748.0 | -463.1 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 26.17 | 299.38 | -26.98 | 41.83 | 0.6129 | -628.0 | -535.4 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 26.00 | 299.38 | -26.98 | 42.03 | 0.6113 | -668.0 | -616.9 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 25.84 | 299.35 | -27.01 | 42.26 | 0.6101 | -728.0 | -650.8 | |
| 0.00 | 1.02 | 0.00 | 0.63 | 25.31 | 299.44 | -26.92 | 42.83 | 0.6043 | -692.0 | -501.9 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 19.96 | 299.85 | -26.51 | 49.68 | 0.5523 | -472.0 | -399.5 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 20.15 | 299.46 | -26.89 | 49.78 | 0.5583 | -556.0 | -480.4 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 20.44 | 299.30 | -27.05 | 49.52 | 0.5625 | -599.0 | -505.8 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 21.33 | 298.45 | -27.91 | 49.06 | 0.5794 | -594.0 | -493.0 | |
| 0.00 | 2.13 | 0.00 | 1.38 | 27.17 | 296.24 | -30.12 | 43.53 | 0.6505 | 735.0 | 654.4 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 26.90 | 296.20 | -30.15 | 43.88 | 0.6486 | 667.0 | 598.6 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 28.01 | 295.63 | -30.73 | 43.05 | 0.6631 | 746.0 | 634.3 | |
| 0.00 | 2.38 | 0.00 | 1.59 | 28.76 | 295.31 | -31.05 | 42.45 | 0.6722 | 592.0 | 597.9 | |
| 0.00 | 1.79 | 0.00 | 1.12 | 23.31 | 296.87 | -29.48 | 47.82 | 0.6123 | 823.0 | 664.0 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 21.86 | 297.18 | -29.18 | 49.51 | 0.5973 | 614.0 | 622.5 | |
| 0.00 | 1.70 | 0.00 | 1.11 | 26.97 | 295.68 | -30.67 | 44.24 | 0.6540 | 750.0 | 634.5 | |
| 0.00 | 1.70 | 0.00 | 1.07 | 23.67 | 296.52 | -29.83 | 47.65 | 0.6188 | 917.0 | 775.2 | |
| 0.00 | 2.72 | 0.00 | 1.81 | 28.32 | 295.06 | -31.30 | 43.17 | 0.6708 | 616.0 | 502.3 | |
| 0.00 | 2.47 | 0.00 | 1.57 | 23.81 | 295.85 | -30.50 | 48.05 | 0.6267 | 728.0 | 641.1 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 24.10 | 295.40 | -30.96 | 48.05 | 0.6337 | 253.0 | 229.8 | |
| 0.26 | 2.47 | 0.16 | 1.56 | 23.19 | 295.49 | -30.87 | 49.17 | 0.6256 | 806.3 | 507.8 | |
| 0.00 | 9.87 | 0.00 | 6.26 | 22.97 | 295.17 | -31.19 | 49.73 | 0.6272 | 950.0 | 763.8 | |
| 0.00 | 2.38 | 0.00 | 1.51 | 22.23 | 295.02 | -31.34 | 50.84 | 0.6232 | 895.0 | 706.8 | |
| 0.00 | 1.96 | 0.00 | 1.25 | 23.14 | 294.79 | -31.57 | 49.82 | 0.6324 | 749.0 | 581.5 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 21.65 | 295.16 | -31.19 | 51.51 | 0.6174 | 868.0 | 717.9 | |
| 0.00 | 1.70 | 0.00 | 1.07 | 21.43 | 295.11 | -31.25 | 51.86 | 0.6163 | 818.0 | 691.5 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 21.81 | 295.01 | -31.35 | 51.41 | 0.6202 | 761.0 | 660.7 | |
| 0.00 | 0.68 | 0.00 | 0.43 | 22.10 | 294.90 | -31.45 | 51.10 | 0.6235 | 729.0 | 645.9 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 21.94 | 294.76 | -31.60 | 51.44 | 0.6239 | 664.0 | 619.6 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 23.50 | 294.27 | -32.08 | 49.76 | 0.6405 | 546.0 | 512.1 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 23.92 | 293.96 | -32.39 | 49.45 | 0.6468 | 594.0 | 510.5 | |
| 0.00 | 2.81 | 0.00 | 1.85 | 25.37 | 293.50 | -32.86 | 47.99 | 0.6622 | 654.0 | 547.5 | |
| 0.00 | 2.64 | 0.00 | 1.69 | 22.79 | 293.97 | -32.39 | 50.93 | 0.6384 | 681.0 | 518.5 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 22.40 | 294.07 | -32.28 | 51.36 | 0.6345 | 578.0 | 504.1 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 22.56 | 293.92 | -32.44 | 51.27 | 0.6373 | 550.0 | 476.8 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 21.30 | 292.12 | -34.24 | 54.30 | 0.6479 | 575.0 | 502.0 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 19.83 | 290.07 | -36.29 | 57.66 | 0.6613 | 639.0 | 513.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
