SDO HMI 2011-12-16 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.47 | 109.64 | 11.05 | 65.29 | 8.44 | 357.62 | 32.36 | 287.02 | 0.5557 | -286.9 | -232.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

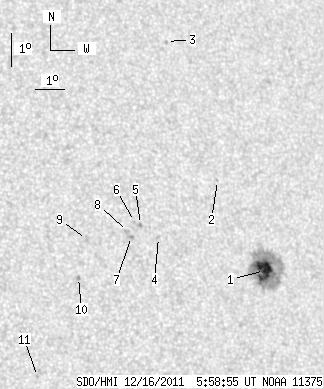

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.47 | 95.93 | 11.05 | 57.46 | 8.31 | 358.20 | 32.94 | 286.49 | 0.5633 | -1143.7 | -369.9 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 11.00 | 356.83 | 31.56 | 291.81 | 0.5556 | -563.0 | -482.8 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 15.22 | 355.61 | 30.35 | 299.62 | 0.5631 | 782.0 | 588.7 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 9.26 | 354.59 | 29.32 | 290.03 | 0.5166 | 647.0 | 529.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 9.65 | 354.01 | 28.74 | 291.10 | 0.5102 | 678.0 | 593.8 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 9.74 | 353.81 | 28.55 | 291.39 | 0.5079 | 757.0 | 653.0 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 9.29 | 353.67 | 28.40 | 290.63 | 0.5037 | 839.0 | 722.5 | |
| 0.00 | 2.38 | 0.00 | 1.36 | 9.44 | 353.55 | 28.28 | 290.99 | 0.5026 | 819.0 | 661.2 | |
| 0.00 | 2.13 | 0.00 | 1.20 | 9.18 | 352.14 | 26.87 | 291.44 | 0.4814 | 869.0 | 588.9 | |
| 0.00 | 2.04 | 0.00 | 1.15 | 8.04 | 351.78 | 26.52 | 289.39 | 0.4707 | 907.0 | 782.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 5.08 | 350.27 | 25.00 | 283.96 | 0.4356 | 863.0 | 660.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
