SDO HMI 2011-12-16 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.21 | 66.96 | 9.36 | 34.73 | -17.87 | 323.93 | -0.79 | 177.71 | 0.2924 | -92.7 | -81.5 | |
|
previous
or next observation for the same group /

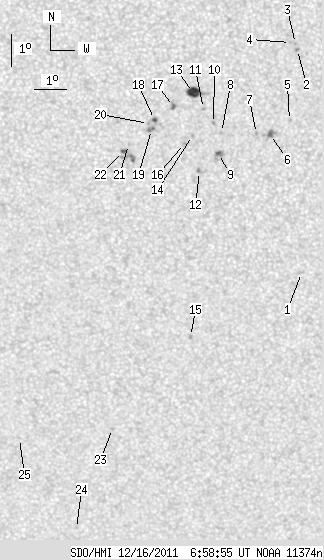

back to the solar disc SDO HMI 2011-12-16 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.26 | -21.64 | 327.31 | 2.59 | 186.80 | 0.3561 | -681.0 | -596.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -14.75 | 327.09 | 2.37 | 189.55 | 0.2417 | 1039.0 | 863.8 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -14.56 | 327.03 | 2.30 | 189.43 | 0.2384 | 1055.0 | 870.1 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -14.53 | 326.87 | 2.15 | 188.84 | 0.2375 | 908.0 | 681.3 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -16.91 | 326.87 | 2.15 | 187.45 | 0.2774 | 845.0 | 736.0 | |
| 2.89 | 7.49 | 1.49 | 3.87 | -17.34 | 326.28 | 1.56 | 185.29 | 0.2835 | 1036.0 | 771.8 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -17.31 | 325.85 | 1.13 | 183.84 | 0.2824 | 939.0 | 705.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -17.28 | 324.77 | 0.05 | 180.17 | 0.2812 | 815.0 | 657.3 | |
| 1.70 | 6.21 | 0.88 | 3.22 | -17.93 | 324.68 | -0.04 | 179.86 | 0.2921 | 1020.7 | 775.6 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -17.01 | 324.52 | -0.20 | 179.31 | 0.2766 | 855.0 | 690.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -16.55 | 324.22 | -0.51 | 178.19 | 0.2690 | 684.0 | 592.8 | |
| 0.00 | 2.38 | 0.00 | 1.24 | -18.48 | 324.09 | -0.64 | 177.99 | 0.3016 | 916.0 | 791.8 | |
| 9.36 | 13.45 | 4.80 | 6.90 | -16.06 | 323.91 | -0.81 | 177.00 | 0.2609 | -1085.9 | -715.7 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -17.37 | 323.87 | -0.85 | 177.13 | 0.2831 | 864.0 | 627.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -23.67 | 323.77 | -0.95 | 177.75 | 0.3870 | -1032.0 | -784.1 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -17.62 | 323.63 | -1.10 | 176.35 | 0.2875 | 810.0 | 655.4 | |
| 0.77 | 3.06 | 0.39 | 1.57 | -16.48 | 323.29 | -1.43 | 174.88 | 0.2689 | -1002.7 | -890.1 | |
| 1.53 | 2.55 | 0.79 | 1.32 | -16.88 | 322.70 | -2.02 | 172.97 | 0.2766 | -1002.2 | -845.1 | |
| 0.00 | 2.72 | 0.00 | 1.41 | -17.19 | 322.61 | -2.11 | 172.79 | 0.2819 | -867.0 | -876.3 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -17.00 | 322.52 | -2.20 | 172.39 | 0.2790 | -1038.0 | -821.3 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -17.65 | 321.89 | -2.83 | 170.66 | 0.2913 | -694.0 | -574.1 | |
| 1.96 | 9.36 | 1.01 | 4.85 | -17.87 | 321.73 | -2.99 | 170.28 | 0.2953 | -1037.1 | -917.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -26.65 | 321.17 | -3.55 | 172.71 | 0.4378 | -763.0 | -587.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -29.97 | 319.83 | -4.89 | 171.32 | 0.4916 | -684.0 | -604.5 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -26.97 | 318.07 | -6.65 | 166.73 | 0.4515 | -688.0 | -428.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
