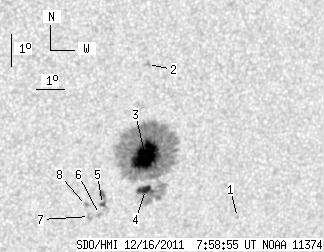

SDO HMI 2011-12-16 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.75 | 325.99 | 30.39 | 191.35 | -18.31 | 352.18 | 28.00 | 236.14 | 0.5389 | 1066.0 | 393.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.63 | -19.96 | 355.90 | 31.72 | 236.51 | 0.5949 | -642.0 | -484.2 | |
| 0.00 | 2.55 | 0.00 | 1.47 | -15.28 | 351.83 | 27.66 | 241.01 | 0.5140 | -742.0 | -609.9 | |
| 41.11 | 305.48 | 24.11 | 179.35 | -18.07 | 352.21 | 28.03 | 236.56 | 0.5375 | 1299.7 | 390.2 | |
| 8.85 | -3.00 | 5.23 | -3.00 | -19.12 | 352.40 | 28.22 | 235.02 | 0.5474 | 866.1 | 999999 | |
| 1.79 | 9.53 | 1.05 | 5.57 | -19.60 | 350.97 | 26.79 | 232.97 | 0.5340 | 757.8 | 670.8 | |
| 0.00 | 2.47 | 0.00 | 1.45 | -19.91 | 350.92 | 26.74 | 232.43 | 0.5359 | 856.0 | 688.7 | |
| 0.00 | 2.64 | 0.00 | 1.54 | -19.98 | 350.58 | 26.40 | 232.01 | 0.5324 | 711.0 | 650.8 | |
| 0.00 | 2.30 | 0.00 | 1.34 | -19.63 | 350.41 | 26.24 | 232.39 | 0.5277 | 880.0 | 779.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
