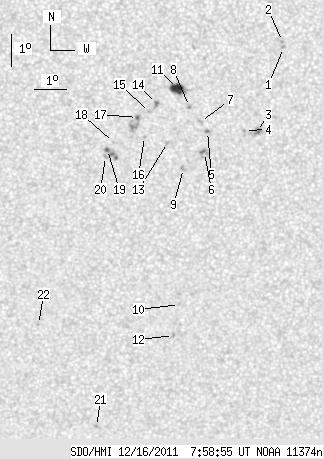

SDO HMI 2011-12-16 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.04 | 68.89 | 7.20 | 35.60 | -17.52 | 323.61 | -0.57 | 178.35 | 0.2862 | -165.0 | -118.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.83 | -14.75 | 327.12 | 2.94 | 191.82 | 0.2435 | 978.0 | 809.0 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -14.57 | 327.09 | 2.91 | 191.85 | 0.2403 | 1035.0 | 851.0 | |
| 0.00 | 6.30 | 0.00 | 3.25 | -17.32 | 326.32 | 2.15 | 187.26 | 0.2840 | 1094.0 | 894.5 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -17.29 | 325.95 | 1.77 | 186.03 | 0.2828 | 960.0 | 744.0 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -17.32 | 324.81 | 0.63 | 182.15 | 0.2819 | 1106.0 | 874.9 | |
| 0.00 | 3.06 | 0.00 | 1.59 | -17.96 | 324.72 | 0.54 | 181.76 | 0.2927 | 933.0 | 921.6 | |
| 0.00 | 2.30 | 0.00 | 1.18 | -17.01 | 324.59 | 0.41 | 181.44 | 0.2766 | 935.0 | 597.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -16.55 | 324.25 | 0.07 | 180.27 | 0.2688 | 863.0 | 664.7 | |
| 0.00 | 2.47 | 0.00 | 1.28 | -18.46 | 324.07 | -0.11 | 179.65 | 0.3009 | 851.0 | 728.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -22.72 | 323.93 | -0.24 | 179.39 | 0.3712 | -793.0 | -603.2 | |
| 9.87 | 14.98 | 5.06 | 7.68 | -16.00 | 323.88 | -0.29 | 178.91 | 0.2595 | -1100.2 | -597.4 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -23.71 | 323.74 | -0.44 | 178.96 | 0.3873 | -957.0 | -753.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -17.66 | 323.57 | -0.61 | 177.98 | 0.2876 | 906.0 | 625.5 | |
| 1.70 | 2.64 | 0.87 | 1.36 | -16.46 | 323.24 | -0.94 | 176.61 | 0.2677 | -897.4 | -864.3 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -16.73 | 323.02 | -1.16 | 175.91 | 0.2726 | -725.0 | -561.8 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -17.47 | 322.86 | -1.32 | 175.57 | 0.2852 | -432.0 | -378.1 | |
| 1.19 | 11.15 | 0.61 | 5.75 | -16.89 | 322.65 | -1.53 | 174.66 | 0.2757 | -1046.4 | -781.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -17.65 | 321.90 | -2.28 | 172.46 | 0.2899 | -858.0 | -571.8 | |
| 1.28 | 7.75 | 0.66 | 4.01 | -17.87 | 321.71 | -2.47 | 171.95 | 0.2939 | -1059.1 | -936.6 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -18.09 | 321.64 | -2.53 | 171.85 | 0.2977 | -824.0 | -704.4 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -26.65 | 321.19 | -2.99 | 173.84 | 0.4368 | -798.0 | -571.6 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -23.35 | 319.40 | -4.78 | 168.61 | 0.3892 | -747.0 | -603.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
