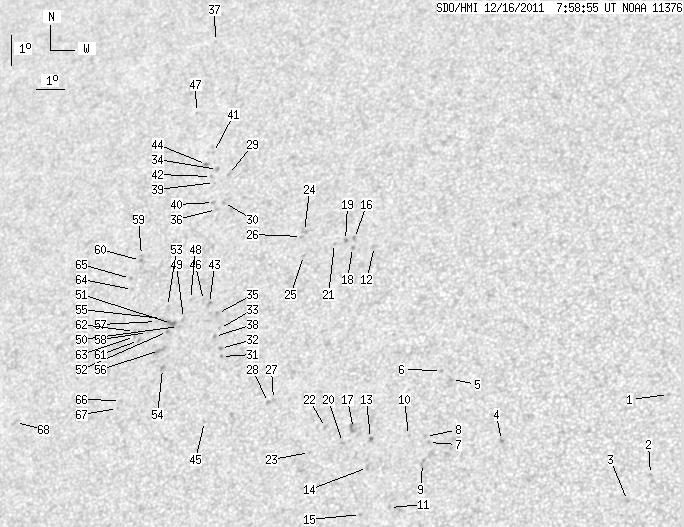

SDO HMI 2011-12-16 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 101.93 | 0.00 | 61.58 | 22.71 | 298.37 | -25.81 | 44.73 | 0.5692 | 168.7 | 135.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.56 | 20.63 | 312.51 | -11.67 | 27.17 | 0.4163 | 727.0 | 490.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.11 | 312.12 | -12.06 | 31.22 | 0.3847 | 802.0 | 622.4 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 17.31 | 311.45 | -12.73 | 33.81 | 0.3797 | 859.0 | 702.4 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 19.20 | 307.23 | -16.95 | 38.58 | 0.4433 | -1019.0 | -842.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 21.14 | 305.35 | -18.83 | 38.64 | 0.4841 | -839.0 | -704.0 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 21.43 | 304.97 | -19.20 | 38.77 | 0.4909 | -751.0 | -559.6 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 19.15 | 304.83 | -19.34 | 42.28 | 0.4670 | -741.0 | -602.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 19.34 | 304.71 | -19.46 | 42.17 | 0.4703 | -721.0 | -544.7 | |
| 0.00 | 3.15 | 0.00 | 1.76 | 18.50 | 304.72 | -19.46 | 43.47 | 0.4612 | -693.0 | -637.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 19.38 | 304.14 | -20.03 | 42.91 | 0.4767 | -677.0 | -503.1 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 17.13 | 303.79 | -20.39 | 46.99 | 0.4572 | -698.0 | -558.7 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 25.48 | 302.00 | -22.18 | 37.44 | 0.5628 | -368.0 | -449.6 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 19.29 | 302.88 | -21.29 | 44.72 | 0.4892 | -827.0 | -737.6 | |
| 0.00 | 2.30 | 0.00 | 1.30 | 18.38 | 302.90 | -21.27 | 46.11 | 0.4797 | -683.0 | -575.0 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 16.92 | 302.85 | -21.32 | 48.57 | 0.4659 | -749.0 | -589.9 | |
| 0.00 | 1.70 | 0.00 | 1.03 | 25.75 | 301.24 | -22.94 | 38.01 | 0.5724 | -720.0 | -604.3 | |
| 0.00 | 5.02 | 0.00 | 2.87 | 19.61 | 302.27 | -21.91 | 45.02 | 0.4990 | -617.0 | -617.4 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 25.45 | 301.23 | -22.95 | 38.38 | 0.5694 | -843.0 | -620.7 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 25.68 | 300.93 | -23.25 | 38.44 | 0.5745 | -763.0 | -620.8 | |
| 0.00 | 1.70 | 0.00 | 0.97 | 19.17 | 301.96 | -22.22 | 46.07 | 0.4980 | -581.0 | -501.7 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 25.59 | 300.56 | -23.62 | 38.97 | 0.5768 | -618.0 | -500.5 | |
| 0.00 | 2.21 | 0.00 | 1.27 | 19.65 | 301.31 | -22.87 | 46.13 | 0.5097 | -535.0 | -488.5 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 18.87 | 300.88 | -23.29 | 47.83 | 0.5070 | -651.0 | -540.2 | |
| 0.00 | 3.23 | 0.00 | 1.98 | 26.00 | 299.39 | -24.79 | 39.76 | 0.5914 | -702.0 | -534.3 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 25.20 | 299.53 | -24.65 | 40.58 | 0.5823 | -734.0 | -505.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 25.83 | 299.32 | -24.86 | 40.04 | 0.5905 | -836.0 | -656.5 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 20.55 | 299.38 | -24.80 | 47.00 | 0.5392 | -638.0 | -445.6 | |
| 0.00 | 2.04 | 0.00 | 1.20 | 20.46 | 299.22 | -24.96 | 47.31 | 0.5400 | -485.0 | -422.5 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 27.93 | 296.08 | -28.10 | 40.78 | 0.6393 | 701.0 | 552.1 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 26.99 | 296.15 | -28.02 | 41.82 | 0.6302 | 822.0 | 656.2 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 21.94 | 297.28 | -26.90 | 47.21 | 0.5740 | 744.0 | 657.4 | |
| 0.00 | 1.53 | 0.00 | 0.93 | 22.20 | 297.19 | -26.98 | 46.94 | 0.5772 | 872.0 | 683.1 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 22.85 | 297.02 | -27.16 | 46.23 | 0.5847 | 689.0 | 588.5 | |
| 0.00 | 2.38 | 0.00 | 1.54 | 28.10 | 295.61 | -28.56 | 41.01 | 0.6450 | 762.0 | 574.3 | |
| 0.00 | 1.79 | 0.00 | 1.10 | 23.33 | 296.84 | -27.34 | 45.76 | 0.5909 | 841.0 | 670.2 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 26.76 | 295.95 | -28.22 | 42.29 | 0.6299 | 621.0 | 497.8 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 32.55 | 294.07 | -30.11 | 37.51 | 0.6969 | 543.0 | 395.6 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 22.59 | 296.89 | -27.28 | 46.70 | 0.5837 | 849.0 | 665.4 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 27.67 | 295.63 | -28.55 | 41.51 | 0.6410 | 567.0 | 497.1 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 26.99 | 295.78 | -28.40 | 42.17 | 0.6336 | 774.0 | 570.7 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 28.68 | 295.29 | -28.89 | 40.65 | 0.6530 | 623.0 | 559.9 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 27.87 | 295.45 | -28.72 | 41.43 | 0.6443 | 528.0 | 453.2 | |
| 0.00 | 2.30 | 0.00 | 1.42 | 23.66 | 296.47 | -27.70 | 45.68 | 0.5974 | 931.0 | 773.3 | |
| 0.00 | 1.79 | 0.00 | 1.16 | 28.28 | 295.14 | -29.04 | 41.24 | 0.6507 | 777.0 | 627.4 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 19.88 | 297.08 | -27.09 | 50.35 | 0.5585 | -615.0 | -429.2 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 23.76 | 296.23 | -27.94 | 45.78 | 0.6007 | 618.0 | 620.3 | |
| 0.00 | 0.43 | 0.00 | 0.28 | 30.06 | 294.18 | -29.99 | 40.07 | 0.6745 | 506.0 | 432.6 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 23.80 | 295.75 | -28.43 | 46.19 | 0.6059 | 673.0 | 564.5 | |
| 0.00 | 2.04 | 0.00 | 1.26 | 23.18 | 295.64 | -28.54 | 47.10 | 0.6018 | 681.0 | 494.5 | |
| 0.00 | 1.28 | 0.00 | 0.79 | 22.92 | 295.51 | -28.66 | 47.56 | 0.6009 | 871.0 | 663.4 | |
| 0.00 | 4.00 | 0.00 | 2.48 | 23.02 | 295.23 | -28.94 | 47.68 | 0.6046 | 873.0 | 809.7 | |
| 0.00 | 1.28 | 0.00 | 0.79 | 22.77 | 295.15 | -29.03 | 48.11 | 0.6034 | 885.0 | 771.1 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 23.58 | 294.95 | -29.22 | 47.20 | 0.6121 | 464.0 | 447.8 | |
| 0.00 | 2.04 | 0.00 | 1.25 | 21.58 | 295.23 | -28.94 | 49.65 | 0.5928 | 793.0 | 785.4 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 23.19 | 294.83 | -29.35 | 47.83 | 0.6102 | 701.0 | 677.1 | |
| 0.00 | 4.85 | 0.00 | 3.00 | 22.16 | 295.00 | -29.18 | 49.07 | 0.6000 | 806.0 | 699.8 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 23.09 | 294.66 | -29.51 | 48.10 | 0.6111 | 611.0 | 533.5 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 22.74 | 294.42 | -29.76 | 48.79 | 0.6108 | 586.0 | 558.0 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 25.26 | 293.54 | -30.64 | 46.29 | 0.6400 | 670.0 | 553.7 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 25.09 | 293.55 | -30.63 | 46.49 | 0.6386 | 758.0 | 654.9 | |
| 0.00 | 1.19 | 0.00 | 0.74 | 22.49 | 294.15 | -30.03 | 49.37 | 0.6116 | 676.0 | 570.1 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 22.78 | 293.93 | -30.25 | 49.17 | 0.6162 | 622.0 | 479.6 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 22.62 | 293.97 | -30.21 | 49.35 | 0.6145 | 530.0 | 432.1 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 24.14 | 293.50 | -30.67 | 47.74 | 0.6314 | 702.0 | 555.3 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 24.51 | 293.33 | -30.85 | 47.42 | 0.6360 | 712.0 | 621.3 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 20.57 | 293.93 | -30.25 | 52.20 | 0.5992 | 708.0 | 565.1 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 20.32 | 293.87 | -30.30 | 52.61 | 0.5979 | 566.0 | 465.6 | |
| 0.00 | 2.98 | 0.00 | 1.91 | 19.91 | 290.17 | -34.00 | 56.01 | 0.6365 | 533.0 | 410.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
