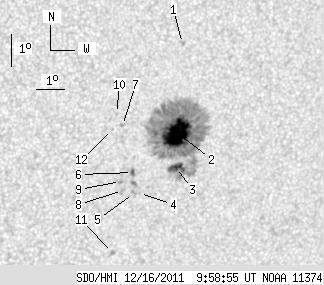

SDO HMI 2011-12-16 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.12 | 327.49 | 32.11 | 194.11 | -18.35 | 352.16 | 29.07 | 236.98 | 0.5523 | 995.3 | 378.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.47 | 0.00 | 1.44 | -15.34 | 351.93 | 28.85 | 241.83 | 0.5299 | -681.0 | -606.1 | |
| 42.38 | 306.29 | 25.11 | 181.62 | -18.10 | 352.22 | 29.13 | 237.44 | 0.5512 | 1293.1 | 376.9 | |
| 10.04 | -2.00 | 6.00 | -2.00 | -19.15 | 352.38 | 29.30 | 235.89 | 0.5605 | 828.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -19.97 | 351.22 | 28.13 | 233.63 | 0.5526 | 432.0 | 335.5 | |
| 0.00 | 2.04 | 0.00 | 1.21 | -19.97 | 351.01 | 27.92 | 233.43 | 0.5501 | 734.0 | 589.7 | |
| 1.70 | 6.38 | 1.00 | 3.77 | -19.32 | 350.85 | 27.76 | 234.32 | 0.5433 | 937.5 | 691.1 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -17.87 | 350.24 | 27.15 | 236.15 | 0.5252 | 719.0 | 512.1 | |
| 0.00 | 2.64 | 0.00 | 1.56 | -19.88 | 350.60 | 27.51 | 233.21 | 0.5446 | 822.0 | 648.5 | |
| 0.00 | 1.79 | 0.00 | 1.05 | -19.60 | 350.48 | 27.39 | 233.54 | 0.5410 | 854.0 | 739.0 | |
| 0.00 | 0.34 | 0.00 | 0.20 | -17.50 | 349.97 | 26.89 | 236.52 | 0.5192 | -549.0 | -562.8 | |
| 0.00 | 1.96 | 0.00 | 1.17 | -21.83 | 350.63 | 27.54 | 230.27 | 0.5604 | 707.0 | 589.6 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -17.99 | 349.91 | 26.83 | 235.64 | 0.5221 | -496.0 | -369.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
