SDO HMI 2011-12-16 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 76.98 | 0.00 | 46.06 | 22.72 | 298.30 | -24.78 | 43.63 | 0.5586 | 128.6 | 179.6 | |
|
previous
or next observation for the same group /

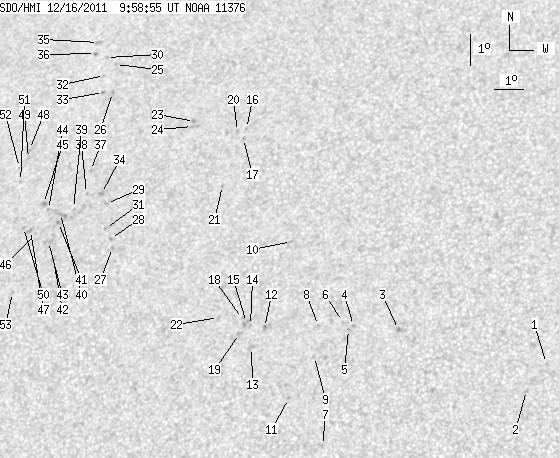

back to the solar disc SDO HMI 2011-12-16 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.36 | 18.16 | 312.17 | -10.92 | 28.71 | 0.3762 | 791.0 | 663.0 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 17.32 | 311.59 | -11.49 | 31.16 | 0.3693 | 802.0 | 643.0 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 19.25 | 307.34 | -15.74 | 36.51 | 0.4324 | -939.0 | -779.5 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 19.38 | 305.86 | -17.22 | 38.74 | 0.4483 | -843.0 | -728.7 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 19.26 | 305.71 | -17.38 | 39.16 | 0.4483 | -811.0 | -704.3 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 19.51 | 305.49 | -17.60 | 39.14 | 0.4534 | -589.0 | -437.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 15.65 | 305.23 | -17.86 | 45.88 | 0.4131 | -898.0 | -665.7 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 19.39 | 304.71 | -18.38 | 40.50 | 0.4598 | -835.0 | -645.2 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 18.42 | 304.69 | -18.40 | 42.03 | 0.4491 | -743.0 | -631.0 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 22.07 | 303.46 | -19.63 | 38.49 | 0.5022 | -701.0 | -531.0 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 17.11 | 303.98 | -19.10 | 45.21 | 0.4427 | -732.0 | -643.9 | |
| 0.00 | 2.38 | 0.00 | 1.34 | 19.34 | 302.93 | -20.16 | 43.13 | 0.4777 | -811.0 | -665.2 | |
| 0.00 | 2.55 | 0.00 | 1.44 | 18.71 | 302.57 | -20.51 | 44.57 | 0.4749 | -542.0 | -508.6 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 19.41 | 302.45 | -20.64 | 43.67 | 0.4834 | -683.0 | -474.1 | |
| 0.00 | 3.32 | 0.00 | 1.88 | 19.50 | 302.30 | -20.78 | 43.72 | 0.4859 | -669.0 | -597.2 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 25.76 | 301.28 | -21.81 | 36.64 | 0.5627 | -663.0 | -579.0 | |
| 0.00 | 1.53 | 0.00 | 0.91 | 25.43 | 301.24 | -21.85 | 37.09 | 0.5595 | -861.0 | -648.4 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 19.63 | 302.15 | -20.93 | 43.73 | 0.4889 | -583.0 | -515.4 | |
| 0.00 | 1.70 | 0.00 | 0.96 | 19.16 | 302.12 | -20.97 | 44.50 | 0.4844 | -715.0 | -621.5 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 25.67 | 300.98 | -22.11 | 37.12 | 0.5643 | -593.0 | -486.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 23.90 | 300.79 | -22.30 | 39.53 | 0.5472 | -453.0 | -367.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 19.67 | 301.34 | -21.75 | 44.72 | 0.4979 | -764.0 | -577.5 | |
| 0.00 | 1.96 | 0.00 | 1.19 | 26.01 | 299.38 | -23.71 | 38.56 | 0.5820 | -686.0 | -597.9 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 25.85 | 299.34 | -23.74 | 38.79 | 0.5806 | -848.0 | -615.9 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 27.95 | 296.01 | -27.08 | 39.79 | 0.6306 | 729.0 | 622.2 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 27.00 | 296.15 | -26.94 | 40.75 | 0.6206 | 781.0 | 644.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 21.92 | 297.30 | -25.79 | 46.09 | 0.5623 | 768.0 | 593.2 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 22.21 | 297.17 | -25.91 | 45.83 | 0.5663 | 850.0 | 686.9 | |
| 0.00 | 1.87 | 0.00 | 1.14 | 23.35 | 296.80 | -26.29 | 44.69 | 0.5805 | 893.0 | 689.3 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 28.19 | 295.60 | -27.48 | 39.90 | 0.6364 | 733.0 | 614.1 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 22.54 | 296.93 | -26.16 | 45.64 | 0.5718 | 786.0 | 705.0 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 27.58 | 295.70 | -27.39 | 40.52 | 0.6300 | 625.0 | 467.5 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 27.01 | 295.81 | -27.27 | 41.08 | 0.6237 | 582.0 | 547.9 | |
| 0.00 | 2.81 | 0.00 | 1.71 | 23.67 | 296.54 | -26.54 | 44.51 | 0.5860 | 891.0 | 706.4 | |
| 0.00 | 2.98 | 0.00 | 1.93 | 28.70 | 295.15 | -27.93 | 39.74 | 0.6450 | 711.0 | 573.1 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 28.33 | 295.15 | -27.94 | 40.17 | 0.6417 | 783.0 | 644.4 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 24.43 | 295.97 | -27.11 | 44.10 | 0.5985 | 750.0 | 643.7 | |
| 0.00 | 1.02 | 0.00 | 0.63 | 23.68 | 296.00 | -27.09 | 45.05 | 0.5915 | 756.0 | 560.5 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 23.19 | 295.64 | -27.45 | 46.04 | 0.5908 | 623.0 | 556.4 | |
| 0.00 | 5.11 | 0.00 | 3.14 | 23.04 | 295.20 | -27.88 | 46.67 | 0.5939 | 827.0 | 701.9 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 22.75 | 295.20 | -27.89 | 47.07 | 0.5915 | 858.0 | 782.3 | |
| 0.00 | 2.21 | 0.00 | 1.34 | 21.56 | 295.27 | -27.81 | 48.62 | 0.5806 | 733.0 | 672.0 | |
| 0.00 | 3.23 | 0.00 | 1.98 | 22.14 | 294.97 | -28.12 | 48.11 | 0.5887 | 778.0 | 651.2 | |
| 0.00 | 1.02 | 0.00 | 0.63 | 23.17 | 294.73 | -28.35 | 46.93 | 0.5999 | 671.0 | 604.9 | |
| 0.00 | 2.21 | 0.00 | 1.37 | 23.37 | 294.51 | -28.58 | 46.89 | 0.6039 | 733.0 | 605.6 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 22.40 | 294.44 | -28.65 | 48.24 | 0.5965 | 469.0 | 380.6 | |
| 0.00 | 2.98 | 0.00 | 1.84 | 22.50 | 294.23 | -28.85 | 48.30 | 0.5994 | 753.0 | 569.1 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 25.14 | 293.54 | -29.55 | 45.48 | 0.6284 | 775.0 | 718.8 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 24.84 | 293.58 | -29.50 | 45.81 | 0.6255 | 734.0 | 654.8 | |
| 0.00 | 1.28 | 0.00 | 0.79 | 22.60 | 293.95 | -29.13 | 48.42 | 0.6032 | 521.0 | 442.8 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 24.09 | 293.48 | -29.61 | 46.87 | 0.6203 | 669.0 | 489.2 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 24.55 | 293.32 | -29.76 | 46.42 | 0.6257 | 702.0 | 549.0 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 20.52 | 294.01 | -29.07 | 51.25 | 0.5858 | 700.0 | 440.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
