SDO HMI 2011-12-16 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.96 | 56.93 | 9.24 | 29.37 | -17.02 | 323.58 | 2.13 | 187.38 | 0.2795 | -435.9 | -318.3 | |
|
previous
or next observation for the same group /

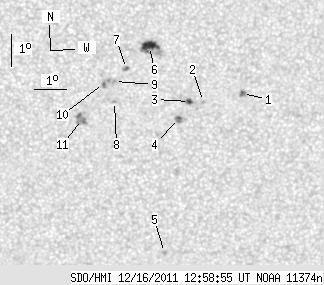

back to the solar disc SDO HMI 2011-12-16 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 3.15 | 0.44 | 1.63 | -17.26 | 326.56 | 5.12 | 196.96 | 0.2934 | 1098.9 | 887.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -17.51 | 325.36 | 3.91 | 192.94 | 0.2922 | 899.0 | 741.8 | |
| 2.81 | 4.76 | 1.45 | 2.47 | -17.51 | 324.93 | 3.48 | 191.54 | 0.2906 | 1081.7 | 680.7 | |
| 1.87 | 5.62 | 0.97 | 2.91 | -18.03 | 324.59 | 3.15 | 190.14 | 0.2982 | 1038.7 | 729.1 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -22.22 | 324.23 | 2.79 | 187.11 | 0.3656 | -1071.0 | -829.1 | |
| 10.81 | 22.21 | 5.54 | 11.39 | -15.83 | 323.67 | 2.22 | 188.32 | 0.2590 | -1108.2 | -325.6 | |
| 0.60 | 2.81 | 0.31 | 1.44 | -16.50 | 322.97 | 1.52 | 185.46 | 0.2689 | -994.3 | -787.5 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -17.51 | 322.60 | 1.16 | 183.89 | 0.2854 | -868.0 | -642.3 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -16.90 | 322.60 | 1.16 | 184.04 | 0.2751 | -1050.0 | -915.2 | |
| 1.02 | 4.08 | 0.53 | 2.10 | -16.96 | 322.26 | 0.82 | 182.85 | 0.2758 | -920.8 | -912.0 | |
| 0.00 | 8.93 | 0.00 | 4.63 | -18.07 | 321.58 | 0.14 | 180.45 | 0.2941 | -1217.0 | -922.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
