SDO HMI 2011-12-16 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.23 | 93.58 | 9.70 | 59.24 | 8.42 | 357.74 | 37.40 | 285.00 | 0.6240 | -426.3 | -272.9 | |
|
previous
or next observation for the same group /

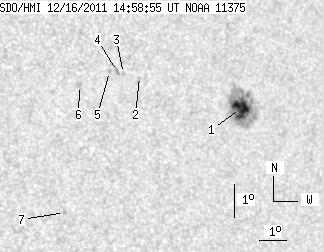

back to the solar disc SDO HMI 2011-12-16 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.23 | 82.77 | 9.70 | 52.79 | 8.37 | 358.30 | 37.96 | 284.71 | 0.6314 | -1087.6 | -394.3 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 9.28 | 354.66 | 34.32 | 287.57 | 0.5859 | 564.0 | 463.5 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 9.37 | 354.09 | 33.75 | 287.97 | 0.5785 | 632.0 | 590.3 | |
| 0.00 | 2.38 | 0.00 | 1.44 | 9.43 | 353.88 | 33.54 | 288.16 | 0.5758 | 745.0 | 645.8 | |
| 0.00 | 1.62 | 0.00 | 0.97 | 9.42 | 353.60 | 33.25 | 288.29 | 0.5719 | 668.0 | 529.6 | |
| 0.00 | 3.83 | 0.00 | 2.27 | 8.99 | 352.48 | 32.14 | 288.08 | 0.5549 | 786.0 | 478.6 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 5.20 | 351.67 | 31.32 | 281.59 | 0.5306 | 463.0 | 477.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
