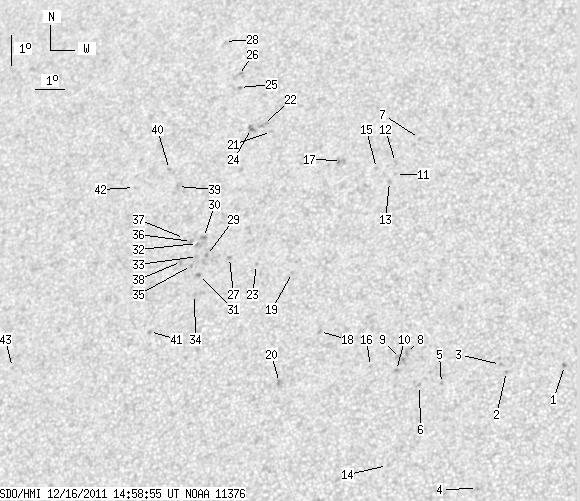

SDO HMI 2011-12-16 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 72.35 | 0.00 | 42.76 | 23.38 | 297.76 | -22.58 | 40.33 | 0.5444 | 27.6 | 92.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.92 | 19.22 | 307.67 | -12.68 | 30.92 | 0.4051 | -936.0 | -731.4 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 19.04 | 305.82 | -14.52 | 34.66 | 0.4187 | -928.0 | -750.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 19.26 | 305.61 | -14.74 | 34.72 | 0.4234 | -807.0 | -604.5 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 15.41 | 305.19 | -15.15 | 41.71 | 0.3803 | -902.0 | -694.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 18.67 | 303.75 | -16.59 | 38.78 | 0.4338 | -808.0 | -622.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 18.62 | 303.04 | -17.30 | 40.02 | 0.4402 | -795.0 | -628.4 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 26.59 | 301.97 | -18.38 | 31.34 | 0.5443 | -746.0 | -596.5 | |
| 0.00 | 2.04 | 0.00 | 1.14 | 19.66 | 302.50 | -17.84 | 39.29 | 0.4577 | -839.0 | -667.9 | |
| 0.00 | 3.57 | 0.00 | 1.99 | 19.47 | 302.33 | -18.02 | 39.83 | 0.4572 | -588.0 | -587.6 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 19.09 | 302.24 | -18.11 | 40.54 | 0.4538 | -838.0 | -660.2 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 25.40 | 301.33 | -19.01 | 33.51 | 0.5352 | -645.0 | -586.4 | |
| 0.00 | 1.96 | 0.00 | 1.15 | 25.79 | 301.27 | -19.08 | 33.15 | 0.5404 | -575.0 | -458.8 | |
| 0.00 | 1.70 | 0.00 | 0.99 | 25.17 | 301.16 | -19.18 | 34.00 | 0.5339 | -709.0 | -597.6 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 16.13 | 302.25 | -18.09 | 45.37 | 0.4210 | -737.0 | -608.8 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 25.60 | 300.64 | -19.71 | 34.19 | 0.5432 | -700.0 | -527.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 19.22 | 301.37 | -18.98 | 41.63 | 0.4642 | -577.0 | -447.3 | |
| 0.00 | 4.00 | 0.00 | 2.38 | 25.87 | 299.37 | -20.98 | 35.49 | 0.5570 | -676.0 | -572.9 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 20.34 | 299.52 | -20.83 | 42.52 | 0.4953 | -726.0 | -525.4 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 22.23 | 298.31 | -22.04 | 41.40 | 0.5273 | -714.0 | -596.6 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 18.74 | 298.40 | -21.95 | 46.38 | 0.4910 | -644.0 | -568.8 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 26.86 | 296.67 | -23.67 | 37.51 | 0.5906 | 766.0 | 630.0 | |
| 0.00 | 3.06 | 0.00 | 1.88 | 27.10 | 296.33 | -24.02 | 37.61 | 0.5959 | 664.0 | 648.1 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 22.50 | 297.02 | -23.33 | 42.58 | 0.5429 | 781.0 | 682.5 | |
| 0.00 | 2.81 | 0.00 | 1.73 | 26.97 | 295.92 | -24.42 | 38.20 | 0.5981 | 778.0 | 665.1 | |
| 0.00 | 1.53 | 0.00 | 0.96 | 28.35 | 295.14 | -25.20 | 37.44 | 0.6187 | 663.0 | 528.6 | |
| 0.00 | 5.19 | 0.00 | 3.28 | 28.76 | 295.00 | -25.34 | 37.13 | 0.6239 | 405.0 | 496.8 | |
| 0.00 | 1.62 | 0.00 | 0.96 | 22.73 | 296.03 | -24.32 | 43.39 | 0.5550 | 802.0 | 655.3 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 29.93 | 294.16 | -26.19 | 36.70 | 0.6423 | 557.0 | 496.8 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 22.80 | 295.20 | -25.14 | 44.20 | 0.5640 | 862.0 | 747.0 | |
| 0.00 | 2.21 | 0.00 | 1.33 | 23.39 | 294.98 | -25.37 | 43.66 | 0.5718 | 856.0 | 693.8 | |
| 0.00 | 1.96 | 0.00 | 1.17 | 22.19 | 295.04 | -25.30 | 45.20 | 0.5599 | 924.0 | 771.7 | |
| 0.00 | 1.19 | 0.00 | 0.72 | 23.19 | 294.81 | -25.54 | 44.10 | 0.5717 | 830.0 | 690.5 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 22.77 | 294.89 | -25.45 | 44.57 | 0.5669 | 285.0 | 389.5 | |
| 0.00 | 1.53 | 0.00 | 0.91 | 21.55 | 295.02 | -25.32 | 46.11 | 0.5542 | 711.0 | 577.2 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 22.49 | 294.74 | -25.61 | 45.12 | 0.5658 | 740.0 | 617.4 | |
| 0.00 | 2.30 | 0.00 | 1.39 | 23.26 | 294.58 | -25.77 | 44.25 | 0.5746 | 737.0 | 523.6 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 23.36 | 294.31 | -26.04 | 44.40 | 0.5782 | 528.0 | 441.1 | |
| 0.00 | 2.55 | 0.00 | 1.54 | 22.62 | 294.35 | -25.99 | 45.34 | 0.5709 | 602.0 | 497.1 | |
| 0.00 | 2.13 | 0.00 | 1.31 | 25.06 | 293.67 | -26.67 | 42.85 | 0.6002 | 776.0 | 656.1 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 25.63 | 293.24 | -27.10 | 42.57 | 0.6095 | 759.0 | 621.2 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 20.39 | 293.66 | -26.69 | 49.18 | 0.5585 | 772.0 | 605.2 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 25.05 | 292.10 | -28.25 | 44.40 | 0.6152 | 598.0 | 454.4 | |
| 0.00 | 1.02 | 0.00 | 0.63 | 19.30 | 288.96 | -31.39 | 54.93 | 0.6030 | 681.0 | 553.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
