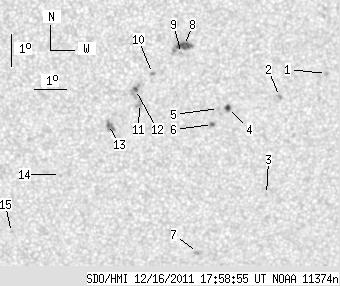

SDO HMI 2011-12-16 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.44 | 51.03 | 6.92 | 26.45 | -17.40 | 323.42 | 4.73 | 195.66 | 0.2949 | -344.4 | -466.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.89 | -16.49 | 328.16 | 9.47 | 210.62 | 0.3110 | 652.0 | 548.0 | |
| 0.00 | 2.04 | 0.00 | 1.06 | -17.20 | 326.72 | 8.03 | 205.63 | 0.3100 | 1110.0 | 880.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -20.24 | 326.46 | 7.77 | 201.10 | 0.3539 | -609.0 | -533.5 | |
| 2.47 | 2.98 | 1.28 | 1.55 | -17.55 | 325.15 | 6.46 | 200.70 | 0.3049 | 967.2 | 964.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -17.58 | 324.84 | 6.15 | 199.75 | 0.3036 | 849.0 | 719.5 | |
| 0.68 | 2.04 | 0.35 | 1.06 | -18.07 | 324.67 | 5.98 | 198.70 | 0.3104 | 1051.8 | 931.4 | |
| 0.00 | 3.32 | 0.00 | 1.77 | -22.07 | 324.35 | 5.66 | 194.29 | 0.3716 | -937.0 | -603.6 | |
| 7.82 | 12.67 | 4.02 | 6.51 | -15.65 | 323.73 | 5.04 | 198.56 | 0.2670 | -1121.8 | -767.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -15.89 | 323.65 | 4.96 | 197.97 | 0.2705 | -106.0 | -146.8 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -16.51 | 322.77 | 4.08 | 194.35 | 0.2762 | -1117.0 | -832.2 | |
| 0.00 | 5.10 | 0.00 | 2.64 | -17.43 | 322.38 | 3.69 | 192.30 | 0.2898 | -763.0 | -708.5 | |
| 1.79 | 7.23 | 0.92 | 3.73 | -17.00 | 322.25 | 3.56 | 192.21 | 0.2823 | -1183.4 | -897.6 | |
| 0.68 | 6.97 | 0.35 | 3.62 | -18.07 | 321.43 | 2.74 | 188.84 | 0.2975 | -1165.1 | -899.3 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -19.62 | 319.96 | 1.27 | 183.74 | 0.3205 | -291.0 | -428.4 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -21.44 | 318.42 | -0.27 | 179.28 | 0.3498 | -790.0 | -660.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
