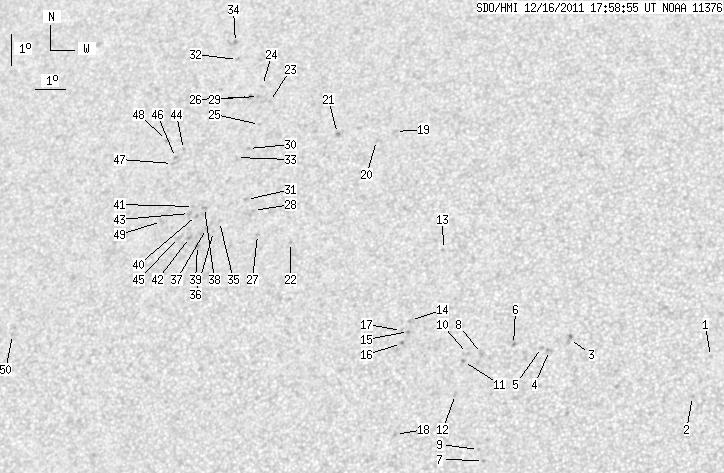

SDO HMI 2011-12-16 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 75.60 | 0.00 | 43.49 | 22.31 | 299.12 | -19.57 | 37.25 | 0.5045 | 149.1 | 138.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.81 | 18.59 | 312.19 | -6.50 | 17.70 | 0.3545 | 715.0 | 486.7 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.35 | 311.67 | -7.02 | 20.27 | 0.3379 | 774.0 | 644.9 | |
| 0.00 | 3.66 | 0.00 | 1.97 | 19.14 | 307.71 | -10.98 | 27.54 | 0.3907 | -299.0 | -323.1 | |
| 0.00 | 2.21 | 0.00 | 1.19 | 18.80 | 307.10 | -11.59 | 29.27 | 0.3907 | -808.0 | -723.8 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 18.89 | 306.84 | -11.85 | 29.69 | 0.3941 | -805.0 | -561.0 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 18.99 | 305.94 | -12.75 | 31.37 | 0.4027 | -1043.0 | -726.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 15.39 | 305.25 | -13.44 | 38.41 | 0.3623 | -934.0 | -717.8 | |
| 0.00 | 3.49 | 0.00 | 1.89 | 18.71 | 304.94 | -13.75 | 33.69 | 0.4077 | -750.0 | -562.1 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 15.73 | 305.07 | -13.62 | 38.18 | 0.3684 | -735.0 | -569.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 18.72 | 304.49 | -14.20 | 34.53 | 0.4118 | -756.0 | -609.7 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 18.47 | 304.38 | -14.31 | 35.10 | 0.4096 | -900.0 | -766.7 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 17.44 | 304.21 | -14.48 | 36.99 | 0.3982 | -792.0 | -649.7 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 22.02 | 303.38 | -15.31 | 32.03 | 0.4635 | -738.0 | -623.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 19.76 | 302.54 | -16.15 | 36.42 | 0.4428 | -530.0 | -475.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 19.42 | 302.51 | -16.18 | 36.97 | 0.4388 | -913.0 | -802.1 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 19.04 | 302.32 | -16.37 | 37.84 | 0.4361 | -750.0 | -713.0 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 19.45 | 302.28 | -16.41 | 37.30 | 0.4414 | -616.0 | -531.7 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 16.21 | 302.39 | -16.30 | 42.30 | 0.4021 | -781.0 | -633.0 | |
| 0.00 | 1.96 | 0.00 | 1.14 | 25.87 | 301.26 | -17.43 | 30.80 | 0.5285 | -377.0 | -325.5 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 25.58 | 300.65 | -18.04 | 31.97 | 0.5297 | -643.0 | -476.8 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 25.82 | 299.26 | -19.43 | 33.57 | 0.5436 | -893.0 | -744.9 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 22.28 | 298.22 | -20.47 | 39.32 | 0.5127 | -741.0 | -633.9 | |
| 0.00 | 1.19 | 0.00 | 0.72 | 26.90 | 296.66 | -22.03 | 35.57 | 0.5772 | 798.0 | 649.4 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 27.44 | 296.30 | -22.39 | 35.39 | 0.5860 | 497.0 | 440.2 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 26.14 | 296.46 | -22.23 | 36.69 | 0.5706 | 667.0 | 578.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 27.07 | 296.23 | -22.46 | 35.88 | 0.5826 | 803.0 | 708.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 22.54 | 297.05 | -21.64 | 40.47 | 0.5268 | 872.0 | 605.7 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 23.32 | 296.78 | -21.91 | 39.78 | 0.5376 | 761.0 | 635.9 | |
| 0.00 | 2.13 | 0.00 | 1.30 | 27.08 | 295.91 | -22.78 | 36.25 | 0.5854 | 683.0 | 584.3 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 25.35 | 296.23 | -22.46 | 37.90 | 0.5642 | 635.0 | 522.6 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 23.68 | 296.47 | -22.22 | 39.69 | 0.5443 | 871.0 | 706.3 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 28.33 | 295.19 | -23.50 | 35.65 | 0.6045 | 560.0 | 488.6 | |
| 0.00 | 1.70 | 0.00 | 1.02 | 25.05 | 295.86 | -22.83 | 38.69 | 0.5644 | 603.0 | 555.7 | |
| 0.00 | 1.79 | 0.00 | 1.12 | 28.91 | 294.98 | -23.71 | 35.25 | 0.6122 | 794.0 | 666.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 22.97 | 295.66 | -23.03 | 41.59 | 0.5448 | 649.0 | 553.5 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 22.65 | 295.51 | -23.18 | 42.19 | 0.5430 | 702.0 | 580.6 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 22.75 | 295.25 | -23.44 | 42.37 | 0.5466 | 923.0 | 777.4 | |
| 0.00 | 2.04 | 0.00 | 1.21 | 23.43 | 295.05 | -23.64 | 41.69 | 0.5553 | 897.0 | 663.9 | |
| 0.00 | 2.04 | 0.00 | 1.20 | 22.20 | 295.03 | -23.66 | 43.35 | 0.5433 | 952.0 | 794.1 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 23.17 | 294.82 | -23.87 | 42.29 | 0.5550 | 782.0 | 658.4 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 23.46 | 294.66 | -24.03 | 42.09 | 0.5595 | 586.0 | 482.7 | |
| 0.00 | 2.13 | 0.00 | 1.26 | 22.46 | 294.71 | -23.98 | 43.37 | 0.5491 | 816.0 | 738.1 | |
| 0.00 | 2.21 | 0.00 | 1.32 | 23.24 | 294.56 | -24.13 | 42.50 | 0.5582 | 834.0 | 586.8 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 25.33 | 293.91 | -24.77 | 40.53 | 0.5851 | 553.0 | 487.4 | |
| 0.00 | 2.98 | 0.00 | 1.77 | 22.47 | 294.32 | -24.37 | 43.80 | 0.5531 | 714.0 | 595.4 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 25.07 | 293.68 | -25.01 | 41.10 | 0.5846 | 853.0 | 737.3 | |
| 0.00 | 1.53 | 0.00 | 0.93 | 24.88 | 293.62 | -25.07 | 41.42 | 0.5833 | 849.0 | 582.6 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 25.64 | 293.23 | -25.46 | 40.88 | 0.5943 | 751.0 | 634.4 | |
| 0.00 | 1.87 | 0.00 | 1.12 | 22.99 | 293.62 | -25.07 | 43.86 | 0.5651 | 629.0 | 534.9 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 19.43 | 289.02 | -29.67 | 53.32 | 0.5843 | 735.0 | 649.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
