SDO HMI 2011-12-16 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.43 | 58.11 | 9.01 | 30.37 | -18.53 | 322.84 | 4.70 | 195.30 | 0.3133 | -438.8 | -485.6 | |
|
previous
or next observation for the same group /

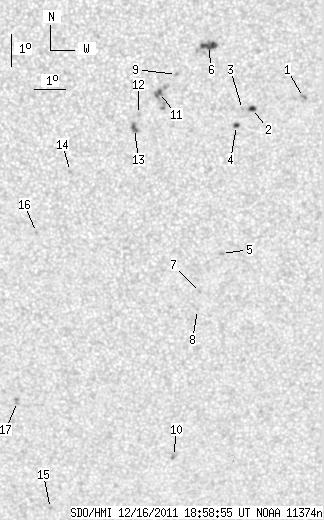

back to the solar disc SDO HMI 2011-12-16 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.98 | 0.00 | 1.55 | -17.21 | 326.70 | 8.57 | 207.08 | 0.3139 | 1021.0 | 785.0 | |
| 2.81 | 4.17 | 1.46 | 2.17 | -17.55 | 325.13 | 6.99 | 202.23 | 0.3081 | 964.2 | 569.2 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.58 | 324.82 | 6.68 | 201.30 | 0.3067 | 898.0 | 690.2 | |
| 2.21 | 2.55 | 1.15 | 1.33 | -18.07 | 324.65 | 6.51 | 200.22 | 0.3133 | 861.4 | 805.2 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -22.07 | 324.34 | 6.20 | 195.60 | 0.3739 | -994.0 | -810.2 | |
| 8.16 | 13.86 | 4.20 | 7.13 | -15.62 | 323.70 | 5.56 | 200.37 | 0.2695 | -1061.0 | -668.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -23.31 | 323.72 | 5.58 | 193.27 | 0.3908 | -749.0 | -600.3 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -23.85 | 323.64 | 5.51 | 192.76 | 0.3990 | -779.0 | -582.3 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -16.51 | 322.74 | 4.60 | 196.10 | 0.2786 | -1006.0 | -773.3 | |
| 0.00 | 1.96 | 0.00 | 1.10 | -28.65 | 323.07 | 4.93 | 189.25 | 0.4712 | 1064.0 | 699.7 | |
| 1.53 | 14.03 | 0.79 | 7.25 | -17.06 | 322.23 | 4.09 | 193.89 | 0.2853 | -1199.2 | -847.5 | |
| 0.00 | 1.79 | 0.00 | 0.93 | -17.74 | 321.59 | 3.45 | 191.30 | 0.2940 | -879.0 | -692.0 | |
| 2.72 | 4.68 | 1.41 | 2.43 | -18.17 | 321.47 | 3.34 | 190.65 | 0.3007 | -1028.4 | -966.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -19.50 | 319.50 | 1.36 | 184.05 | 0.3186 | -987.0 | -810.4 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -30.40 | 318.94 | 0.80 | 181.41 | 0.4921 | -760.0 | -591.7 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -21.41 | 318.44 | 0.30 | 180.80 | 0.3493 | -865.0 | -685.8 | |
| 0.00 | 2.47 | 0.00 | 1.36 | -26.84 | 317.82 | -0.31 | 179.35 | 0.4367 | -729.0 | -737.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
