SDO HMI 2011-12-16 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.38 | 36.32 | 5.37 | 18.88 | -17.05 | 323.33 | 7.95 | 205.65 | 0.3073 | -355.1 | -148.9 | |
|
previous
or next observation for the same group /

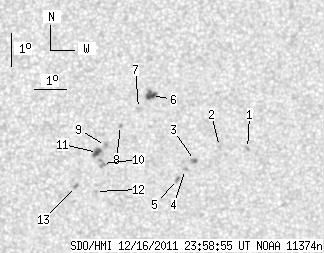

back to the solar disc SDO HMI 2011-12-16 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 0.98 | -17.14 | 326.76 | 11.39 | 214.28 | 0.3365 | 911.0 | 731.8 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -17.08 | 325.88 | 10.50 | 212.29 | 0.3276 | 788.0 | 535.3 | |
| 0.00 | 2.64 | 0.00 | 1.38 | -17.52 | 325.12 | 9.74 | 209.70 | 0.3272 | 1235.0 | 946.9 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -17.79 | 324.85 | 9.47 | 208.59 | 0.3290 | 1063.0 | 800.5 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -18.10 | 324.61 | 9.24 | 207.54 | 0.3316 | 994.0 | 753.0 | |
| 6.21 | 7.23 | 3.21 | 3.74 | -15.53 | 323.68 | 8.31 | 209.16 | 0.2870 | -988.5 | -720.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -15.93 | 323.30 | 7.92 | 207.36 | 0.2897 | -831.0 | -507.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -16.45 | 322.76 | 7.38 | 204.95 | 0.2935 | -867.0 | -691.2 | |
| 0.00 | 3.32 | 0.00 | 1.72 | -17.06 | 322.32 | 6.94 | 202.78 | 0.2998 | -1075.0 | -649.8 | |
| 0.00 | 3.91 | 0.00 | 2.04 | -17.62 | 322.25 | 6.87 | 201.84 | 0.3079 | -780.0 | -718.5 | |
| 4.17 | 6.21 | 2.16 | 3.22 | -17.28 | 322.08 | 6.70 | 201.79 | 0.3016 | -1074.3 | -715.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -18.48 | 322.06 | 6.69 | 200.27 | 0.3201 | -702.0 | -520.6 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -18.33 | 321.46 | 6.09 | 198.76 | 0.3144 | -1055.0 | -858.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
