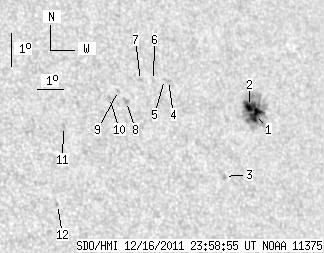

SDO HMI 2011-12-16 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.82 | 81.17 | 10.88 | 55.12 | 8.36 | 357.53 | 42.15 | 283.52 | 0.6849 | -243.5 | -187.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-16 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.10 | 65.17 | 6.27 | 44.85 | 8.28 | 358.48 | 43.11 | 283.13 | 0.6968 | -881.6 | -366.2 | |
| 6.72 | -1.00 | 4.61 | -1.00 | 8.51 | 358.27 | 42.89 | 283.52 | 0.6947 | -1010.7 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.31 | 6.41 | 357.01 | 41.63 | 280.79 | 0.6744 | -676.0 | -553.0 | |
| 0.00 | 1.53 | 0.00 | 1.00 | 9.25 | 355.14 | 39.76 | 285.52 | 0.6575 | 714.0 | 514.7 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 9.28 | 354.99 | 39.61 | 285.61 | 0.6557 | 561.0 | 474.2 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 9.24 | 354.56 | 39.18 | 285.70 | 0.6501 | 600.0 | 454.8 | |
| 0.00 | 2.13 | 0.00 | 1.37 | 9.24 | 354.05 | 38.68 | 285.86 | 0.6436 | 645.0 | 551.7 | |
| 0.00 | 3.06 | 0.00 | 1.96 | 8.60 | 353.44 | 38.06 | 285.09 | 0.6337 | 736.0 | 636.1 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 8.93 | 353.18 | 37.80 | 285.69 | 0.6312 | 586.0 | 469.6 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 8.71 | 352.81 | 37.43 | 285.49 | 0.6258 | 721.0 | 572.5 | |
| 0.00 | 1.62 | 0.00 | 1.00 | 7.82 | 351.00 | 35.63 | 284.71 | 0.5989 | 549.0 | 508.5 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 5.50 | 350.59 | 35.21 | 280.98 | 0.5869 | 667.0 | 535.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
