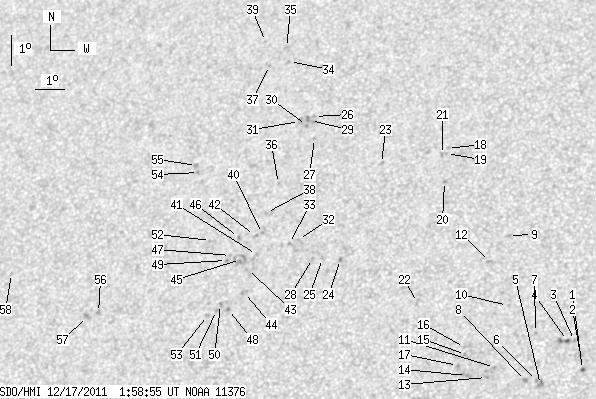

SDO HMI 2011-12-17 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 95.64 | 0.82 | 54.06 | 22.63 | 298.16 | -16.11 | 31.81 | 0.4803 | 118.8 | 127.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-17 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 1.36 | 0.59 | 0.72 | 18.95 | 306.25 | -8.02 | 21.05 | 0.3691 | -880.6 | -825.3 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 19.43 | 306.17 | -8.11 | 20.77 | 0.3767 | -866.0 | -661.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 19.87 | 305.96 | -8.32 | 20.82 | 0.3846 | -909.0 | -640.3 | |
| 0.43 | 3.49 | 0.23 | 1.87 | 19.87 | 305.73 | -8.54 | 21.32 | 0.3859 | -1001.6 | -797.8 | |
| 0.00 | 3.40 | 0.00 | 1.81 | 18.49 | 304.96 | -9.32 | 24.62 | 0.3704 | -869.0 | -773.1 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 18.61 | 304.82 | -9.45 | 24.77 | 0.3731 | -725.0 | -550.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 20.13 | 304.70 | -9.58 | 23.34 | 0.3960 | -622.0 | -527.0 | |
| 0.00 | 2.89 | 0.00 | 1.55 | 18.61 | 304.48 | -9.80 | 25.56 | 0.3755 | -994.0 | -728.7 | |
| 0.00 | 1.79 | 0.00 | 0.99 | 23.24 | 303.61 | -10.67 | 22.43 | 0.4476 | -706.0 | -558.5 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 20.99 | 303.75 | -10.53 | 24.41 | 0.4146 | -647.0 | -505.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 19.03 | 303.47 | -10.81 | 27.27 | 0.3887 | -872.0 | -696.5 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 22.40 | 303.06 | -11.22 | 24.29 | 0.4392 | -794.0 | -678.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 18.71 | 303.23 | -11.04 | 28.16 | 0.3860 | -912.0 | -758.7 | |
| 0.00 | 4.00 | 0.00 | 2.15 | 18.78 | 302.59 | -11.68 | 29.42 | 0.3919 | -865.0 | -625.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.44 | 302.51 | -11.76 | 28.73 | 0.4017 | -863.0 | -711.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.66 | 302.47 | -11.81 | 28.55 | 0.4051 | -513.0 | -389.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 19.09 | 302.28 | -11.99 | 29.64 | 0.3987 | -682.0 | -594.8 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 26.10 | 301.31 | -12.97 | 23.80 | 0.5014 | -530.0 | -445.5 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 25.93 | 301.29 | -12.98 | 23.98 | 0.4992 | -704.0 | -594.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 25.01 | 301.33 | -12.95 | 24.78 | 0.4865 | -753.0 | -601.1 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 25.90 | 301.16 | -13.11 | 24.22 | 0.4996 | -610.0 | -543.8 | |
| 0.00 | 2.98 | 0.00 | 1.64 | 21.10 | 300.83 | -13.45 | 29.89 | 0.4373 | -631.0 | -412.5 | |
| 0.00 | 1.70 | 0.00 | 0.98 | 25.61 | 299.14 | -15.14 | 27.67 | 0.5092 | -791.0 | -563.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 22.49 | 298.15 | -16.13 | 32.70 | 0.4769 | -740.0 | -620.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 22.52 | 297.55 | -16.73 | 33.60 | 0.4825 | 739.0 | 486.8 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 27.19 | 296.60 | -17.67 | 29.70 | 0.5472 | 642.0 | 599.7 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 26.46 | 296.72 | -17.56 | 30.30 | 0.5373 | 771.0 | 637.6 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 22.53 | 297.21 | -17.06 | 34.11 | 0.4853 | 798.0 | 637.9 | |
| 0.00 | 4.17 | 0.00 | 2.46 | 27.06 | 296.48 | -17.79 | 30.00 | 0.5464 | 709.0 | 723.2 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 26.89 | 296.37 | -17.90 | 30.32 | 0.5452 | 893.0 | 710.2 | |
| 0.00 | 3.06 | 0.00 | 1.81 | 27.03 | 296.11 | -18.17 | 30.54 | 0.5488 | 600.0 | 600.9 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 23.14 | 296.66 | -17.61 | 34.16 | 0.4975 | 613.0 | 491.5 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 23.02 | 296.38 | -17.90 | 34.74 | 0.4985 | 740.0 | 646.1 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 29.06 | 295.39 | -18.89 | 29.42 | 0.5783 | 747.0 | 558.6 | |
| 0.00 | 1.79 | 0.00 | 1.09 | 29.54 | 295.19 | -19.09 | 29.20 | 0.5853 | 646.0 | 555.1 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 24.98 | 295.71 | -18.56 | 33.33 | 0.5274 | 594.0 | 491.1 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 28.93 | 294.70 | -19.58 | 30.41 | 0.5816 | 747.0 | 581.4 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 24.03 | 295.45 | -18.83 | 34.81 | 0.5184 | 551.0 | 467.3 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 29.76 | 294.39 | -19.89 | 29.97 | 0.5934 | 560.0 | 452.3 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 23.35 | 295.42 | -18.86 | 35.70 | 0.5107 | 754.0 | 658.6 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 22.67 | 295.31 | -18.96 | 36.70 | 0.5038 | 923.0 | 784.4 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 23.28 | 295.15 | -19.12 | 36.14 | 0.5123 | 852.0 | 680.2 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 22.19 | 295.08 | -19.20 | 37.66 | 0.5004 | 809.0 | 758.0 | |
| 0.00 | 2.64 | 0.00 | 1.50 | 21.45 | 295.08 | -19.20 | 38.65 | 0.4920 | 715.0 | 665.8 | |
| 0.00 | 8.34 | 0.00 | 4.78 | 22.51 | 294.79 | -19.48 | 37.63 | 0.5067 | 955.0 | 740.2 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 23.22 | 294.62 | -19.66 | 36.95 | 0.5164 | 714.0 | 631.6 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 22.64 | 294.43 | -19.84 | 37.95 | 0.5115 | 679.0 | 585.2 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 20.91 | 294.62 | -19.66 | 40.05 | 0.4905 | 1028.0 | 928.6 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 22.48 | 294.32 | -19.95 | 38.31 | 0.5108 | 772.0 | 642.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 21.07 | 294.32 | -19.95 | 40.22 | 0.4951 | 902.0 | 753.6 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 20.88 | 294.22 | -20.06 | 40.64 | 0.4941 | 854.0 | 661.5 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 23.13 | 293.67 | -20.60 | 38.32 | 0.5240 | 610.0 | 476.6 | |
| 0.00 | 1.79 | 0.00 | 1.02 | 20.72 | 293.94 | -20.34 | 41.24 | 0.4952 | 759.0 | 637.3 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 25.36 | 292.87 | -21.41 | 36.57 | 0.5557 | 762.0 | 682.1 | |
| 0.00 | 2.30 | 0.00 | 1.37 | 25.59 | 292.76 | -21.52 | 36.43 | 0.5592 | 600.0 | 532.6 | |
| 0.00 | 2.47 | 0.00 | 1.44 | 20.85 | 290.20 | -24.08 | 45.67 | 0.5351 | 877.0 | 733.5 | |
| 0.00 | 2.81 | 0.00 | 1.65 | 20.73 | 289.84 | -24.44 | 46.25 | 0.5378 | 775.0 | 598.0 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 22.13 | 286.89 | -27.39 | 47.35 | 0.5816 | 529.0 | 506.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
