SDO HMI 2011-12-17 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 105.77 | 0.00 | 59.28 | 22.34 | 298.12 | -14.52 | 29.26 | 0.4651 | 132.9 | 128.2 | |
|
previous
or next observation for the same group /

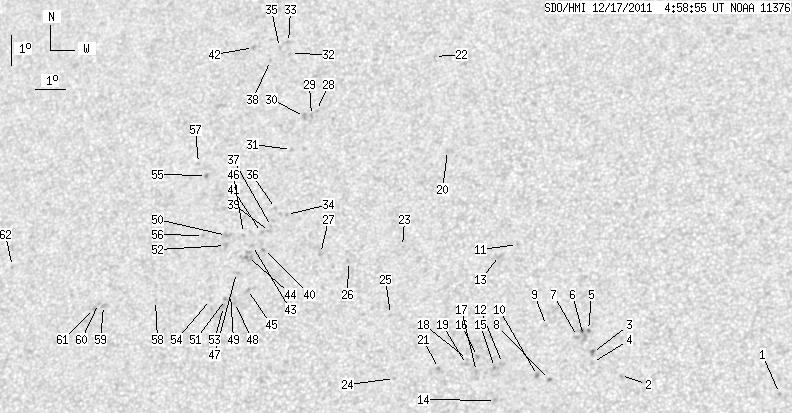

back to the solar disc SDO HMI 2011-12-17 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.08 | 312.16 | -0.48 | 1.38 | 0.3307 | 932.0 | 706.3 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.64 | 307.20 | -5.44 | 14.86 | 0.3516 | -790.0 | -662.5 | |
| 0.00 | 2.81 | 0.00 | 1.49 | 19.37 | 306.30 | -6.34 | 16.57 | 0.3670 | -967.0 | -769.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.05 | 306.31 | -6.33 | 16.80 | 0.3620 | -958.0 | -731.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.06 | 306.14 | -6.49 | 16.38 | 0.3785 | -891.0 | -788.5 | |
| 0.00 | 5.11 | 0.00 | 2.73 | 19.91 | 305.99 | -6.65 | 16.86 | 0.3767 | -782.0 | -613.0 | |
| 0.00 | 1.96 | 0.00 | 1.05 | 19.88 | 305.80 | -6.83 | 17.34 | 0.3772 | -892.0 | -776.3 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 18.52 | 304.98 | -7.66 | 20.59 | 0.3608 | -919.0 | -771.2 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 20.23 | 304.80 | -7.83 | 19.35 | 0.3876 | -733.0 | -446.5 | |
| 0.00 | 2.47 | 0.00 | 1.31 | 18.65 | 304.60 | -8.04 | 21.38 | 0.3650 | -935.0 | -755.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 22.82 | 303.72 | -8.91 | 19.38 | 0.4321 | -733.0 | -548.1 | |
| 0.00 | 2.04 | 0.00 | 1.09 | 19.03 | 303.48 | -9.16 | 23.60 | 0.3776 | -663.0 | -647.2 | |
| 0.00 | 3.49 | 0.00 | 1.91 | 22.47 | 303.16 | -9.47 | 20.81 | 0.4300 | -700.0 | -630.1 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 17.87 | 303.32 | -9.32 | 25.34 | 0.3617 | -856.0 | -668.4 | |
| 0.00 | 3.15 | 0.00 | 1.68 | 18.91 | 303.23 | -9.41 | 24.30 | 0.3774 | -924.0 | -728.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 19.25 | 302.67 | -9.97 | 25.14 | 0.3863 | -858.0 | -669.6 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 18.78 | 302.67 | -9.97 | 25.71 | 0.3795 | -704.0 | -624.1 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 19.16 | 302.36 | -10.28 | 25.93 | 0.3871 | -814.0 | -650.3 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 19.00 | 302.34 | -10.30 | 26.17 | 0.3850 | -742.0 | -606.6 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 25.91 | 301.17 | -11.47 | 21.49 | 0.4903 | -659.0 | -533.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.88 | 301.46 | -11.18 | 28.21 | 0.3898 | -829.0 | -715.7 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 29.07 | 300.38 | -12.26 | 20.26 | 0.5381 | -684.0 | -574.1 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 22.77 | 299.98 | -12.66 | 26.52 | 0.4544 | -642.0 | -489.0 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 18.57 | 300.08 | -12.56 | 31.46 | 0.3966 | -706.0 | -498.9 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 20.60 | 299.79 | -12.85 | 29.38 | 0.4262 | -581.0 | -481.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 22.30 | 298.25 | -14.38 | 30.06 | 0.4608 | -633.0 | -525.2 | |
| 0.00 | 1.70 | 0.00 | 0.95 | 22.56 | 297.30 | -15.34 | 31.33 | 0.4717 | 683.0 | 599.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 27.27 | 296.55 | -16.09 | 27.41 | 0.5372 | 667.0 | 601.2 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 27.10 | 296.40 | -16.24 | 27.79 | 0.5361 | 880.0 | 767.1 | |
| 0.00 | 2.64 | 0.00 | 1.55 | 27.07 | 296.16 | -16.48 | 28.15 | 0.5374 | 810.0 | 649.9 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 25.97 | 295.88 | -16.76 | 29.68 | 0.5257 | 738.0 | 556.1 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 29.20 | 295.32 | -17.31 | 27.25 | 0.5696 | 664.0 | 535.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 29.58 | 295.18 | -17.45 | 27.08 | 0.5751 | 724.0 | 710.3 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 23.83 | 296.01 | -16.63 | 31.85 | 0.4981 | 813.0 | 675.3 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 29.41 | 294.90 | -17.74 | 27.61 | 0.5749 | 728.0 | 583.9 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 24.03 | 295.61 | -17.03 | 32.21 | 0.5038 | 748.0 | 579.0 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 23.44 | 295.55 | -17.08 | 32.99 | 0.4970 | 756.0 | 630.5 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 28.97 | 294.66 | -17.98 | 28.34 | 0.5712 | 522.0 | 449.6 | |
| 0.00 | 2.13 | 0.00 | 1.21 | 23.28 | 295.51 | -17.13 | 33.25 | 0.4954 | 573.0 | 500.6 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 22.70 | 295.38 | -17.25 | 34.15 | 0.4894 | 888.0 | 765.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 23.25 | 295.24 | -17.39 | 33.68 | 0.4973 | 878.0 | 679.8 | |
| 0.00 | 1.96 | 0.00 | 1.19 | 29.42 | 293.97 | -18.67 | 28.79 | 0.5813 | 676.0 | 471.2 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 22.83 | 295.00 | -17.64 | 34.56 | 0.4943 | 743.0 | 569.0 | |
| 0.00 | 9.02 | 0.00 | 5.12 | 22.48 | 294.88 | -17.76 | 35.19 | 0.4911 | 1016.0 | 737.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 21.42 | 295.01 | -17.62 | 36.37 | 0.4773 | 897.0 | 766.1 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 23.22 | 294.64 | -18.00 | 34.60 | 0.5021 | 485.0 | 510.0 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 21.97 | 294.58 | -18.06 | 36.29 | 0.4877 | 785.0 | 637.6 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 21.01 | 294.63 | -18.00 | 37.50 | 0.4760 | 839.0 | 793.1 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 21.26 | 294.47 | -18.17 | 37.40 | 0.4805 | 800.0 | 662.4 | |
| 0.00 | 4.00 | 0.00 | 2.29 | 23.16 | 294.07 | -18.56 | 35.48 | 0.5063 | 786.0 | 572.2 | |
| 0.00 | 1.87 | 0.00 | 1.06 | 21.10 | 294.32 | -18.32 | 37.83 | 0.4800 | 866.0 | 704.5 | |
| 0.00 | 2.30 | 0.00 | 1.31 | 22.84 | 294.09 | -18.55 | 35.87 | 0.5024 | 808.0 | 627.5 | |
| 0.00 | 2.21 | 0.00 | 1.25 | 20.88 | 294.28 | -18.35 | 38.19 | 0.4778 | 642.0 | 591.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 21.11 | 293.82 | -18.82 | 38.55 | 0.4848 | 620.0 | 448.1 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 25.13 | 293.08 | -19.55 | 34.46 | 0.5376 | 820.0 | 684.9 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 23.17 | 293.29 | -19.34 | 36.57 | 0.5133 | 682.0 | 501.5 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 25.53 | 292.74 | -19.90 | 34.45 | 0.5451 | 602.0 | 468.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 21.09 | 291.97 | -20.66 | 41.12 | 0.5027 | 712.0 | 555.2 | |
| 0.00 | 1.70 | 0.00 | 0.98 | 20.94 | 290.23 | -22.41 | 43.55 | 0.5189 | 873.0 | 658.5 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 21.01 | 290.05 | -22.59 | 43.68 | 0.5214 | 668.0 | 527.2 | |
| 0.00 | 1.79 | 0.00 | 1.04 | 20.85 | 289.93 | -22.70 | 44.04 | 0.5210 | 830.0 | 719.8 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 22.22 | 286.83 | -25.80 | 45.59 | 0.5663 | 682.0 | 579.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
