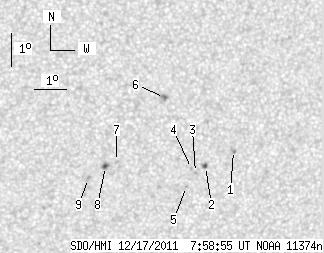

SDO HMI 2011-12-17 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 17.63 | 1.67 | 9.30 | -17.08 | 323.66 | 12.66 | 217.25 | 0.3478 | 44.2 | -229.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-17 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.95 | -16.97 | 326.02 | 15.02 | 222.22 | 0.3706 | 831.0 | 774.4 | |
| 1.70 | 2.64 | 0.91 | 1.40 | -17.47 | 325.17 | 14.17 | 219.68 | 0.3673 | 931.2 | 797.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -17.65 | 324.87 | 13.86 | 218.75 | 0.3664 | 946.0 | 747.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -17.53 | 324.73 | 13.73 | 218.70 | 0.3635 | 855.0 | 638.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.09 | 324.61 | 13.61 | 217.48 | 0.3693 | 766.0 | 600.9 | |
| 0.00 | 3.66 | 0.00 | 1.92 | -15.36 | 323.73 | 12.72 | 220.82 | 0.3264 | -1175.0 | -926.4 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -17.33 | 322.34 | 11.34 | 213.94 | 0.3376 | -845.0 | -678.7 | |
| 1.45 | 2.81 | 0.76 | 1.48 | -17.48 | 322.00 | 11.00 | 212.89 | 0.3367 | -1098.9 | -1005.6 | |
| 0.00 | 2.47 | 0.00 | 1.30 | -17.85 | 321.49 | 10.49 | 211.07 | 0.3373 | -1007.0 | -763.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
