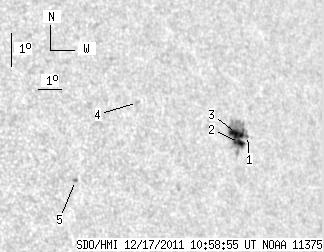

SDO HMI 2011-12-17 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.29 | 43.22 | 10.98 | 32.94 | 8.35 | 358.07 | 48.71 | 282.04 | 0.7622 | -578.4 | -346.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-17 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 39.99 | 0.40 | 30.69 | 8.38 | 358.87 | 49.50 | 281.92 | 0.7712 | -187.7 | -446.6 | |
| 4.76 | -1.00 | 3.66 | -1.00 | 8.17 | 358.46 | 49.10 | 281.72 | 0.7664 | -764.4 | 999999 | |
| 9.02 | -1.00 | 6.92 | -1.00 | 8.44 | 358.37 | 49.01 | 282.09 | 0.7659 | -910.6 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.33 | 9.30 | 354.17 | 44.80 | 284.19 | 0.7197 | 545.0 | 465.5 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 6.93 | 351.30 | 41.93 | 281.55 | 0.6794 | 731.0 | 638.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
