SDO HMI 2011-12-17 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.91 | 235.84 | 30.32 | 174.77 | -18.56 | 352.40 | 45.78 | 245.84 | 0.7469 | 711.0 | 313.2 | |
|
previous
or next observation for the same group /

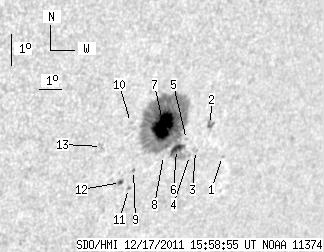

back to the solar disc SDO HMI 2011-12-17 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.67 | -19.31 | 355.31 | 48.69 | 245.85 | 0.7792 | -520.0 | -480.2 | |
| 0.00 | 4.51 | 0.00 | 3.46 | -18.33 | 354.37 | 47.75 | 246.79 | 0.7669 | -649.0 | -461.6 | |
| 0.00 | 2.72 | 0.00 | 2.08 | -19.15 | 353.98 | 47.36 | 245.63 | 0.7652 | -159.0 | -125.9 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -19.30 | 353.76 | 47.14 | 245.36 | 0.7635 | -477.0 | -415.8 | |
| 0.00 | 1.02 | 0.00 | 0.77 | -18.81 | 353.44 | 46.82 | 245.88 | 0.7586 | -473.0 | -379.7 | |
| 6.04 | 216.18 | 4.55 | 160.08 | -19.13 | 353.10 | 46.48 | 245.36 | 0.7561 | 409.5 | 361.2 | |
| 33.42 | -6.00 | 24.71 | -6.00 | -18.39 | 352.25 | 45.63 | 246.01 | 0.7448 | 1126.7 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -19.32 | 352.58 | 45.96 | 244.93 | 0.7513 | 164.0 | 251.8 | |
| 0.00 | 1.28 | 0.00 | 0.94 | -19.80 | 351.41 | 44.79 | 243.88 | 0.7406 | 379.0 | 350.0 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -18.32 | 350.78 | 44.16 | 245.58 | 0.7286 | 219.0 | 308.9 | |
| 0.00 | 1.45 | 0.00 | 1.07 | -20.37 | 351.40 | 44.78 | 243.15 | 0.7425 | 240.0 | 210.0 | |
| 1.45 | 2.81 | 1.06 | 2.05 | -20.19 | 350.98 | 44.36 | 243.22 | 0.7374 | 680.0 | 537.1 | |
| 0.00 | 2.64 | 0.00 | 1.88 | -19.08 | 349.77 | 43.15 | 244.19 | 0.7203 | -481.0 | -358.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
